Routing: gpdk built-in routing method

The routing subfolder in gpdk contains powerful circuit-level design templates, which contain some of the following features:

  • Automatic waveguide type transition function: auto_transitioned

  • Implement modular layout and routing features by batch processing function: comp_scan

  • Automatic port type recognition and extended port length function: extended

  • Extend layout space capabilities for downstream components function: fanout

  • Port leveling function: horizontalized

Users can run the python source code in the corresponding function’s folder and go to its local folder to see its results.

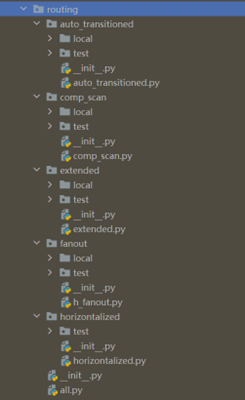

../_images/routing1.png
