Taper

This section will introduce customizing the basic components in gpdk from the beginning, using TaperLinear as an example. The full script can be found in gpdk > components > taper > taper_linear.py.

Full script

from functools import cached_property
from typing import Tuple

from fnpcell import all as fp
from gpdk.technology import get_technology
from gpdk.technology.interfaces import CoreCladdingWaveguideType
from gpdk.routing.extended.extended import Extended


class TaperLinear(fp.IWaveguideLike, fp.PCell):
    """
    Attributes:
        length: length of straight
        left_type: type of waveguide of start
        right_type: type of waveguide of end
        anchor: defaults to `Anchor.START`, origin of the straight(START at origin, CENTER at origin or End at origin)
        port_names: defaults to ["op_0", "op_1", "op_2"]

    Examples:
    ```python
    TECH = get_technology()
        swg = TECH.WG.SWG.C.WIRE.updated(core_design_width=3.8, cladding_design_width=9.6)
    taper = TaperLinear(name="a", length=20, left_type=swg, right_type=TECH.WG.SWG.C.WIRE)
    fp.plot(taper)
    ```
    ![TaperLinear](images/taper_linear.png)
    """

    length: float = fp.PositiveFloatParam(default=10)
    left_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
    right_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
    anchor: fp.Anchor = fp.AnchorParam(default=fp.Anchor.CENTER)
    port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=["op_0", "op_1"])

    def _default_left_type(self):
        return get_technology().WG.FWG.C.WIRE

    def _default_right_type(self):
        return get_technology().WG.FWG.C.EXPANDED

    @cached_property
    def raw_curve(self):
        return fp.g.Line(
            length=self.length,
            anchor=self.anchor,
        )

    def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
        insts, elems, ports = super().build()
        assert self.left_type.is_isomorphic_to(self.right_type), "left_type must be isomorphic to right_type"

        wgt = self.left_type.tapered(taper_function=fp.TaperFunction.LINEAR, final_type=self.right_type)
        wg = wgt(curve=self.raw_curve).with_ports(self.port_names)


        insts += wg
        ports += wg.ports
        return insts, elems, ports


    # # GPDK PCell default to load TaperLinear.dat, here we override the method to use the TaperModel
    @fp.cache()
    def sim_model(self, env: fp.ISimEnv):
        left_model = self.left_type.theoretical_parameters
        right_model = self.right_type.theoretical_parameters
        return fp.sim.TaperLinearModel([left_model, right_model], length=self.length)



if __name__ == "__main__":
    from gpdk.util.path import local_output_file

    gds_file = local_output_file(__file__).with_suffix(".gds")
    library = fp.Library()

    TECH = get_technology()
    # =============================================================
    # fmt: off

    library += TaperLinear()

    # fmt: on
    # =============================================================
    fp.export_gds(library, file=gds_file)
    fp.plot(library)

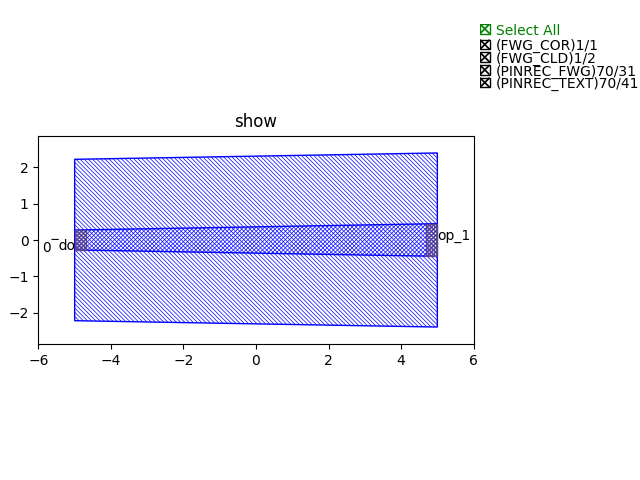

Run the complete script once, generating the following GDS layout.

Section Script Description

Import function packages:

To customize the basic components(straight waveguide/bends) in gpdk, several packages needs to be imported. cached_property, Tuple are for data processing. fnpcell, get_technology, CoreCladdingWaveguideType, Extended are for process information, data format , routing function, etc:
```
from functools import cached_property
from pathlib import Path
from typing import Optional, Tuple

from fnpcell import all as fp
from gpdk.technology import get_technology
from gpdk.technology.interfaces import CoreCladdingWaveguideType
```
Define a new PCell, and a custom class (here will be TaperLinear):

Inherit the new PCell via fp.PCell & fp.IWaveguideLike in fnpcell, which is a new basic component in gpdk. fp.IWaveguideLike is the parent class of all basic components in fnpcell, and it includes the base setting of the components.
```
class TaperLinear(fp.IWaveguideLike, fp.PCell):
```
Define the properties and methods in the TaperLinear class
1. Define user-definable parameters:
```
length: float = fp.PositiveFloatParam(default=10)
left_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
right_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
anchor: fp.Anchor = fp.AnchorParam(default=fp.Anchor.CENTER)
port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=["op_0", "op_1"])
```
  - length: float = fp.PositiveFloatParam(default=10) defines the length of the linear taper, and here we ser default length to 10.
  - left_type and right_type define the waveguide types of the waveguide that the taper will be connected.
  - anchor is used to set the placement of the PCell, fp.Anchor.CENTER means that the center of the PCell will located in (0, 0).
  - port_names: fp.IPortOptions = fp.PortOptionsParam() is used to define the number of ports of the component, since it is a bend, so there will be one port on the left and another on the right, the total number is count=2 . Secondly, the ports are named, and the default is default=("op_0", "op_1"), the user can set it by himself.
2. Create the TaperLinear
  - Create the taper by generating the line via fp.g.Line, where the user-defined parameters are used in the curve. @cached_property is a decorator that converts a class method into a property whose value is calculated only once and then cached like a regular attribute
    @cached_property def raw_curve(self): return fp.g.Line( length=self.length, anchor=self.anchor, )
3. Define the build method to build TaperLinear
  - Instances, elements and ports are usually used in device cells, i.e. calls to other cell instances, graphics in this cell and device ports.

    The three elements in the device are implemented in the PCell definition by calling the build function module in the parent class PCell.
```
def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
    insts, elems, ports = super().build()
```
  - Check the waveguide type of left_type and right_type has to be isomorphic before building the PCell.
```
assert self.left_type.is_isomorphic_to(self.right_type), "left_type must be isomorphic to right_type"
```
  - Create the taper geometry by tapered. waveguide_type.tapered is a function to generate taper of the waveguide type.
```
wgt = self.left_type.tapered(taper_function=fp.TaperFunction.LINEAR, final_type=self.right_type)
```
  - Define the type of waveguide used in the taper, as well as the curve and add the ports generated from the above script.
```
wg = wgt(curve=self.raw_curve).with_ports(self.port_names)
```
  - Initiate wg and ports and return the instances, elements, and ports in the component cell.
```
insts += wg
ports += wg.ports
return insts, elems, ports
```
4. Use the TaperLinear class to create component cells and output the layout
  - Import the package to generate output layout file under the same file of the TaperLinear
```
from gpdk.util.path import local_output_file
```
  - Refer to the path where the top generated gds file is saved. Then obtain all device process information.
```
gds_file = local_output_file(__file__).with_suffix(".gds")
library = fp.Library()
TECH = get_technology()
```
  - Create a TaperLinear component defined with default parameters
```
library += TaperLinear()
```
  - Export GDS files
```
fp.export_gds(library, file=gds_file)
```

Extension of the taper ports

In some cases the ports would have to be extended for several nanometers, here we provide an option for the users to extend their ports without many changes of the script.

Extended function.

Users can find the definition of Extended function in gpdk >> routing >> extended.py. Simply to say, it allow designers automatically add extension (rectangles) next to the ports of the PCell(device).

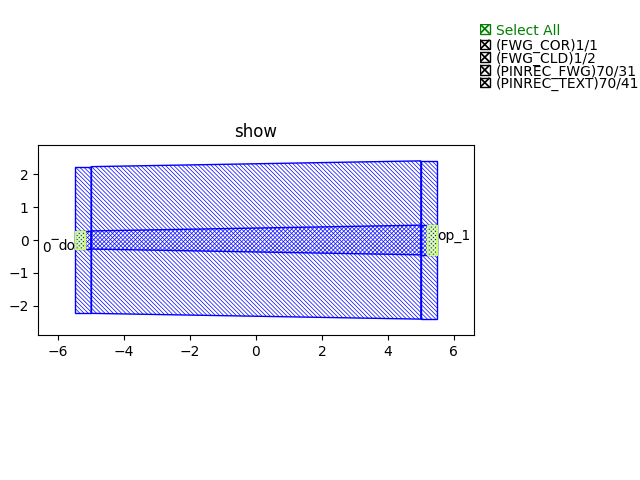

The below scripts shows if user need extra 500 nm extension to each ports in this TaperLinear case.
```
wgt = self.left_type.tapered(taper_function=fp.TaperFunction.LINEAR, final_type=self.right_type)
wg = wgt(curve=self.raw_curve).with_ports(self.port_names)
wg_extended = Extended(device=wg,lengths={"*":0.5})
insts += wg_extended
ports += wg_extended.ports
```
Length of each extended ports can be defined themselves e.g. lengths={"op_0":1, "op_1":2, "*":0.5}. "*" means all of the undefined ports.
Note

For auto-routing applications e.g. straight, bend, taper, transition, they must define a raw_curve in advance to allow PhotoCAD calculate the length of the PCell and use it into auto-route function. In this case, designers has to first define a raw_curve to generate the waveguide, then overlay the raw_curve to the extended taper.:
@property def raw_curve(self): IN, OUT = self.cell.ports return fp.g.LineBetween(IN.position, OUT.position)
