Step 2: Build basic circuits with basic building blocks
This case implements the building of two basic circuits using the base building blocks, including:
DirectionalCoupler
Import the base building blocks created in step 1(Step 1: Build basic building blocks), where bend waveguides and straight waveguides are used:
from step.step1.straight import Straight
from step.step1.bend_circular import BendCircular
Define class DirectionalCouplerBend to easily call directly after:
class DirectionalCouplerBend(fp.PCell):
coupler_spacing: float = fp.PositiveFloatParam(default=0.7, doc="Spacing between the two waveguide centre lines.")
coupler_length: float = fp.PositiveFloatParam(default=6, doc="Length of the directional coupler")
bend_radius: float = fp.PositiveFloatParam(required=False, doc="Bend radius for the auto-generated bends")
straight_after_bend: float = fp.PositiveFloatParam(default=6, doc="Length of the straight waveguide after the bend")
waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType, doc="Waveguide parameters")
port_names: fp.IPortOptions = fp.PortOptionsParam(count=4, default=["op_0", "op_1", "op_2", "op_3"])
def _default_waveguide_type(self):
return get_technology().WG.FWG.C.WIRE
def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
insts, elems, ports = super().build()
# fmt: off
coupler_spacing = self.coupler_spacing
coupler_length = self.coupler_length
bend_radius = self.bend_radius
straight_after_bend = self.straight_after_bend
waveguide_type = self.waveguide_type
port_names = self.port_names
if bend_radius is None:
bend_radius = cast(float, waveguide_type.BEND_CIRCULAR.radius_eff) # type: ignore
dy = coupler_spacing / 2 + waveguide_type.core_width
left_straight_after_bend = Straight(name="lafterbend", length=straight_after_bend, waveguide_type=waveguide_type)
right_straight_after_bend = Straight(name="rafterbend",length=straight_after_bend, waveguide_type=waveguide_type)
left_bend = BendCircular(name="lbend", degrees=90, radius=bend_radius, waveguide_type=waveguide_type)
right_bend = BendCircular(name="rbend", degrees=90, radius=bend_radius, waveguide_type=waveguide_type)
straight_coupler = Straight(name="coupler", length=coupler_length, anchor=fp.Anchor.CENTER, waveguide_type=waveguide_type, transform=fp.translate(0, -dy))
bottom_half = fp.Connected(
name="bottom",
joints=[
straight_coupler["op_0"] <= left_bend["op_0"],
left_bend["op_1"] <= left_straight_after_bend["op_1"],
#
straight_coupler["op_1"] <= right_bend["op_1"],
right_bend["op_0"] <= right_straight_after_bend["op_0"],
],
ports=[
left_straight_after_bend["op_0"],
right_straight_after_bend["op_1"],
],
)
insts += bottom_half
top_half = bottom_half.v_mirrored()
insts += top_half
ports += top_half["op_0"].with_name(port_names[0])
ports += bottom_half["op_0"].with_name(port_names[1]),
ports += bottom_half["op_1"].with_name(port_names[2]),
ports += top_half["op_1"].with_name(port_names[3]),
# fmt: on
return insts, elems, ports
call class, generate directional coupler layout file and plot:
library += DirectionalCouplerBend(name="f", coupler_spacing=0.5, coupler_length=6, bend_radius=10, straight_after_bend=6, waveguide_type=TECH.WG.FWG.C.WIRE)
fp.export_gds(library, file=gds_file)
fp.plot(library) += BendCircular(name="s", radius=15, waveguide_type=TECH.WG.FWG.C.WIRE)
fp.export_gds(library, file=gds_file)
fp.plot(library)

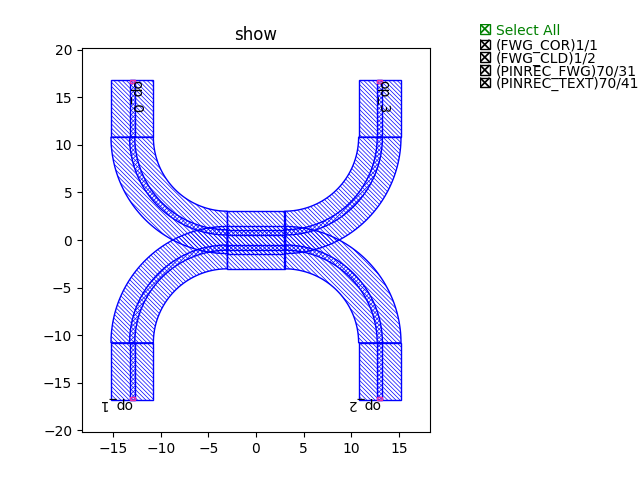

Directional Coupler:
MMI
Import the base building blocks created in step 1(Step 1: Build basic building blocks), where straight waveguides and taper waveguides are used:
from step.step1.straight import Straight
from step.step1.taper_linear import TaperLinear
Define class MMI1x2, to easily call directly after:
class MMI1x2(fp.PCell):
mid_wav_core_width: float = fp.PositiveFloatParam(default=5)
wav_core_width: float = fp.PositiveFloatParam(default=1.5)
length: float = fp.PositiveFloatParam(default=10)
transition_length: float = fp.PositiveFloatParam(default=5)
trace_spacing: float = fp.PositiveFloatParam(default=1)
waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
def _default_waveguide_type(self):
return get_technology().WG.FWG.C.WIRE
def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
insts, elems, ports = super().build()
# fmt: off
mid_wav_core_width = self.mid_wav_core_width
wav_core_width=self.wav_core_width
length = self.length
transition_length = self.transition_length
trace_spacing = self.trace_spacing
waveguide_type = self.waveguide_type
center_force_cladding_width = mid_wav_core_width+waveguide_type.cladding_width
center_type = waveguide_type.updated(core_layout_width=mid_wav_core_width, cladding_layout_width=center_force_cladding_width)
center = Straight(length=length, waveguide_type=center_type, anchor=fp.Anchor.START)
insts += center
wide_type = waveguide_type.updated(core_layout_width=wav_core_width, cladding_layout_width=waveguide_type.cladding_width + wav_core_width)
narrow_type = waveguide_type
taper_left = TaperLinear(length=transition_length, left_type=narrow_type, right_type=wide_type, anchor=fp.Anchor.END)
taper_right = TaperLinear(length=transition_length, left_type=wide_type, right_type=narrow_type, anchor=fp.Anchor.START)
taper_left_inst = taper_left.translated(0, 0)
insts += taper_left_inst
ports += taper_left_inst["op_0"].with_name("op_0")
taper_right_inst1 = taper_right.translated(length, -(wav_core_width+trace_spacing)/2)
insts += taper_right_inst1
ports += taper_right_inst1["op_1"].with_name(f"op_1")
taper_right_inst2 = taper_right.translated(length, (wav_core_width+trace_spacing)/2)
insts += taper_right_inst2
ports += taper_right_inst2["op_1"].with_name(f"op_2")
# fmt: on
return insts, elems, ports
call class, generate MMI layout file and plot:
library += MMI1x2()
fp.export_gds(library, file=gds_file)
fp.plot(library)

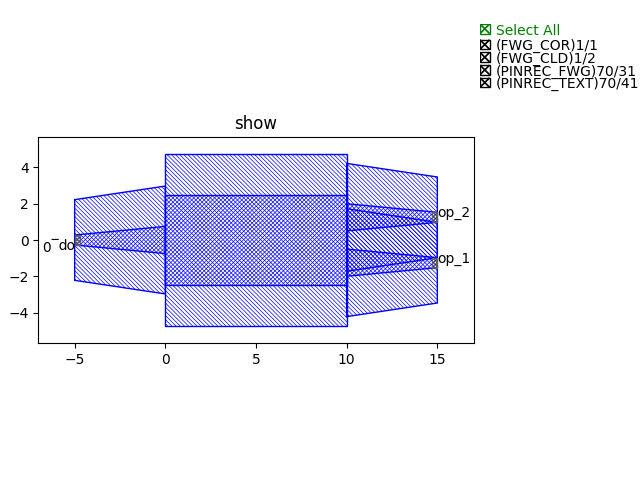

MMI:
