Grating Coupler with linecap

This grating coupler design is used to avoid DRC error at places where turning angle < 90 degree.

Full script

import math
from fnpcell import all as fp
from typing_extensions import Tuple, List, cast
from gpdk import all as pdk
from gpdk.technology import get_technology
from gpdk.technology.wg.types import CoreCladdingWaveguideType


class GC_linecap(fp.PCell):

    length: float = fp.PositiveFloatParam(default=25.0)
    half_degrees: float = fp.DegreeParam(default=20)
    ellipse_ratio: float = fp.PositiveFloatParam(default=1.0, min=1.0, doc="Ellipse(Major/Minor)")
    tooth_width: float = fp.PositiveFloatParam(default=0.5)
    etch_width: float = fp.PositiveFloatParam(default=0.5)
    teeth: int = fp.IntParam(default=30, min=0, doc="Number of tooth")
    waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType, default=fp.USE_DEFAULT_FACTORY)
    port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=("op_0", "optfiber"))

    def _default_waveguide_type(self):
        return get_technology().WG.FWG.C.WIRE

    def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
        insts, elems, ports = super().build()
        TECH = get_technology()

        length = self.length
        half_degrees = self.half_degrees
        ellipse_ratio = self.ellipse_ratio
        tooth_width = self.tooth_width
        etch_width = self.etch_width
        teeth = self.teeth
        waveguide_type = self.waveguide_type
        port_names = self.port_names

        overlap = 1.0
        fiber_pin_width = 5

        half_angle = math.radians(half_degrees)
        waveguide_width = waveguide_type.core_width
        waveguide_cladding = waveguide_type.cladding_width
        waveguide_layer = waveguide_type.core_layer
        cladding_layer = waveguide_type.cladding_layer
        si_etch1_layer = TECH.WG.MWG.C.WIRE.core_layer
        fbrtgt = TECH.LAYER.FIBREC_NOTE


        content: List[fp.IPolygon] = [
            fp.el.EllipticalRing(outer_radius=(length, length / ellipse_ratio), layer=waveguide_layer,
                                 initial_degrees=-half_degrees, final_degrees=half_degrees)]

        final_tooth_radius = length
        for _ in range(teeth):
            final_tooth_radius = final_tooth_radius + etch_width + tooth_width

            curve = fp.g.Arc(radius=final_tooth_radius - tooth_width / 2,
                             initial_degrees=-half_degrees,
                             final_degrees=half_degrees)
            content.append(fp.el.Curve(curve, stroke_width=tooth_width, layer=TECH.LAYER.FWG_COR,
                                       line_cap=(fp.el.LineCapRound(), fp.el.LineCapRound())))

        triangle_h = (waveguide_width / 2.0) / math.tan(half_angle)
        triangle = fp.el.Polygon(raw_shape=[(0, 0), (triangle_h, waveguide_width / 2.0), (triangle_h, - waveguide_width / 2.0)], layer=waveguide_layer)

        content = list(fp.el.PolygonSet(content, layer=waveguide_layer) - triangle)

        fiber_pin_tooth = 1 + int(teeth / 2)  # 1 for wedge_polygon
        fiber_pin_x = min(content[fiber_pin_tooth].polygon_points, key=lambda p: p[0])[0]

        cladding_x = final_tooth_radius + waveguide_cladding / 2
        cladding_y = cladding_x / ellipse_ratio

        cladding_polygon = fp.el.EllipticalRing(outer_radius=(cladding_x, cladding_y), layer=cladding_layer, transform=fp.rotate(radians=math.pi))
        trapezoid = fp.el.Line(length=cladding_x - triangle_h,
                               stroke_width=waveguide_cladding,
                               final_stroke_width=math.tan(half_angle) * cladding_x * 2 + waveguide_cladding,
                               layer=cladding_layer).translated(triangle_h, 0)
        cladding_polygon &= trapezoid
        content.append(trapezoid)


        rec_end = fp.el.Rect(width=2, height=math.tan(half_angle) * cladding_x * 2 + waveguide_cladding, layer=cladding_layer, center=(cladding_x + 1, 0))
        content.append(rec_end)

        # fiber port
        elements = cast(List[fp.IElement], content)
        elements.extend(
            [
                fp.el.Line(length=fiber_pin_width, stroke_width=fiber_pin_width, layer=fbrtgt, transform=fp.translate(fiber_pin_x, 0)),
                fp.el.Text(content="optFiber", text_anchor=fp.Anchor.CENTER, vertical_align=fp.VertialAlign.MIDDLE, layer=fbrtgt, at=(fiber_pin_x + fiber_pin_width / 2, 0)),
            ]
        )

        elems += elements


        s = pdk.Straight(length=5, waveguide_type=waveguide_type)
        s_left = fp.place(s, "op_1", at=(triangle_h, 0))
        insts += s_left

        ports += s_left["op_0"].with_name(port_names[0])
        ports += fp.Port(name=port_names[1], position=(fiber_pin_x + fiber_pin_width / 2, 0), orientation=0,
                         shape=fp.g.Rect(width=fiber_pin_width, height=fiber_pin_width,
                         center=(fiber_pin_x + fiber_pin_width / 2, 0)), waveguide_type=waveguide_type)

        return insts, elems, ports

Section Script Description

  1. User-defined parameters:

    length: float = fp.PositiveFloatParam(default=25.0) # Length of the grating taper
half_degrees: float = fp.DegreeParam(default=20) # Angle of the grating taper
ellipse_ratio: float = fp.PositiveFloatParam(default=1.0, min=1.0, doc="Ellipse(Major/Minor)") # The aspect ratio of the ellipse
tooth_width: float = fp.PositiveFloatParam(default=0.5) # Width of the grating
etch_width: float = fp.PositiveFloatParam(default=0.5) # Spacing of the grating
teeth: int = fp.IntParam(default=30, min=0, doc="Number of tooth") # Number of grating

  2. Layout added in the build method:

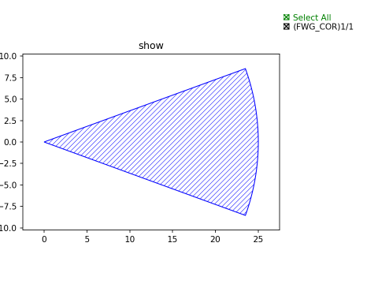

    1. Create content list and generate grating sector:

      Define a list called content, filled with a circular sector generated with fp.el.EllipticalRing with radius length and angle [-half_degrees, half_degrees].

      content: List[fp.IPolygon] = [fp.el.EllipticalRing(outer_radius=(length, length / ellipse_ratio), layer=waveguide_layer,initial_degrees=-half_degrees, final_degrees=half_degrees)]
      ../_images/GC_1.png

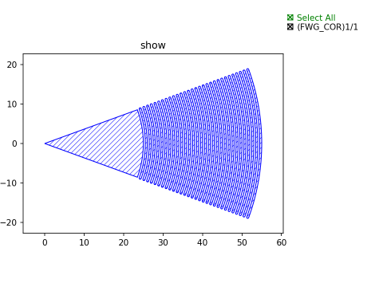

    2. Generate grating tooth and capped line on the edge of the tooth

      Generate a curve with fp.g.Arc, pass it into fp.el.Curve to draw a grating along the curve with a width of tooth_width and a rounded *line_cap*. *Line_cap* can use rounded fp.el.LineCapRound() or triangular fp.el.LineCapTriangle(ratio=0.3), where ratio is the ratio of the height and base of the triangle, so that if ratio<0.5, then the top angle of the line_cap is >90°. (Generating the triangle linecap requires fewer points and runs faster.)

      final_tooth_radius = length
for _ in range(teeth):
    final_tooth_radius = final_tooth_radius + etch_width + tooth_width

    curve = fp.g.Arc(radius=final_tooth_radius - tooth_width / 2,
                     initial_degrees=-half_degrees,
                     final_degrees=half_degrees)
    content.append(fp.el.Curve(curve, stroke_width=tooth_width, layer=TECH.LAYER.FWG_COR,
                               line_cap=(fp.el.LineCapRound(), fp.el.LineCapRound())))
      ../_images/GC_2_round.png ../_images/GC_2_tri.png ../_images/GC_2.png

    3. Trim the input port to connect with waveguide

      Generate an equilateral triangle with height triangle_h and base waveguide_width using fp.el.Polygon, do a boolean operation - on the triangle and the sector, and truncate the top corner of the left side of the sector for subsequent connection of a straight waveguide here.

      triangle_h = (waveguide_width / 2.0) / math.tan(half_angle)
triangle = fp.el.Polygon(raw_shape=[(0, 0), (triangle_h, waveguide_width / 2.0), (triangle_h, - waveguide_width / 2.0)], layer=waveguide_layer)

content = list(fp.el.PolygonSet(content, layer=waveguide_layer) - triangle)
      ../_images/GC_3.png

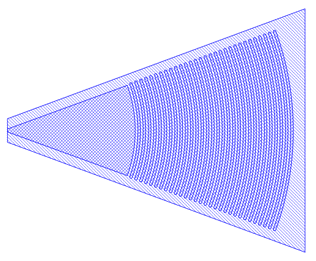

    4. Add cladding layer

      Add trapezoidal cladding.

      cladding_x = final_tooth_radius + waveguide_cladding / 2
cladding_y = cladding_x / ellipse_ratio

cladding_polygon = fp.el.EllipticalRing(outer_radius=(cladding_x, cladding_y), layer=cladding_layer, transform=fp.rotate(radians=math.pi))
trapezoid = fp.el.Line(length=cladding_x - triangle_h,
                       stroke_width=waveguide_cladding,
                       final_stroke_width=math.tan(half_angle) * cladding_x * 2 + waveguide_cladding,
                       layer=cladding_layer).translated(triangle_h, 0)
cladding_polygon &= trapezoid
content.append(trapezoid)
      ../_images/GC_4.png

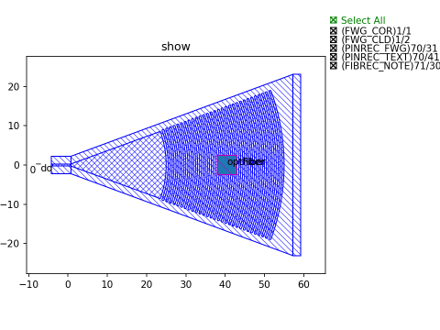

    5. Add straight waveguide for connection and left rectangle to avoid DRC error

      Add rectangles on the right to avoid having <90° bends and straight waveguides on the left to connect to other devices.

      rec_end = fp.el.Rect(width=2, height=math.tan(half_angle) * cladding_x * 2 + waveguide_cladding, layer=cladding_layer, center=(cladding_x + 1, 0))
content.append(rec_end)


s = pdk.Straight(length=5, waveguide_type=waveguide_type)
s_left = fp.place(s, "op_1", at=(triangle_h, 0))
insts += s_left
      ../_images/GC_5.png

    6. Define the ports of the line capped grating coupler

      ports += s_left["op_0"].with_name(port_names[0])
ports += fp.Port(name=port_names[1], position=(fiber_pin_x + fiber_pin_width / 2, 0), orientation=0,
                 shape=fp.g.Rect(width=fiber_pin_width, height=fiber_pin_width,
                 center=(fiber_pin_x + fiber_pin_width / 2, 0)), waveguide_type=waveguide_type)

Run the script and view the layout

Run grating_coupler_linecap.py and use layout tool e.g. KLayout to view the generated GDS file, which should be saved under gpdk > components > grating_coupler > local.

../_images/GC_6.png
