Max-Optics simulation interface: runner.py
Using PhotoCAD and Max-Optics FDTD to link up and implement the layout-driven FDTD simulation ensures that both the flow and simulation come from the same layout, avoiding the layout accuracy error caused by simulation first and layout later, which may cause unnecessary impact on the final test results. We provide such an interface file, runner.py, with the path gpdk/simulation/ffi/maxoptics/fdtd_simulation/runner.py.
Interface usage:

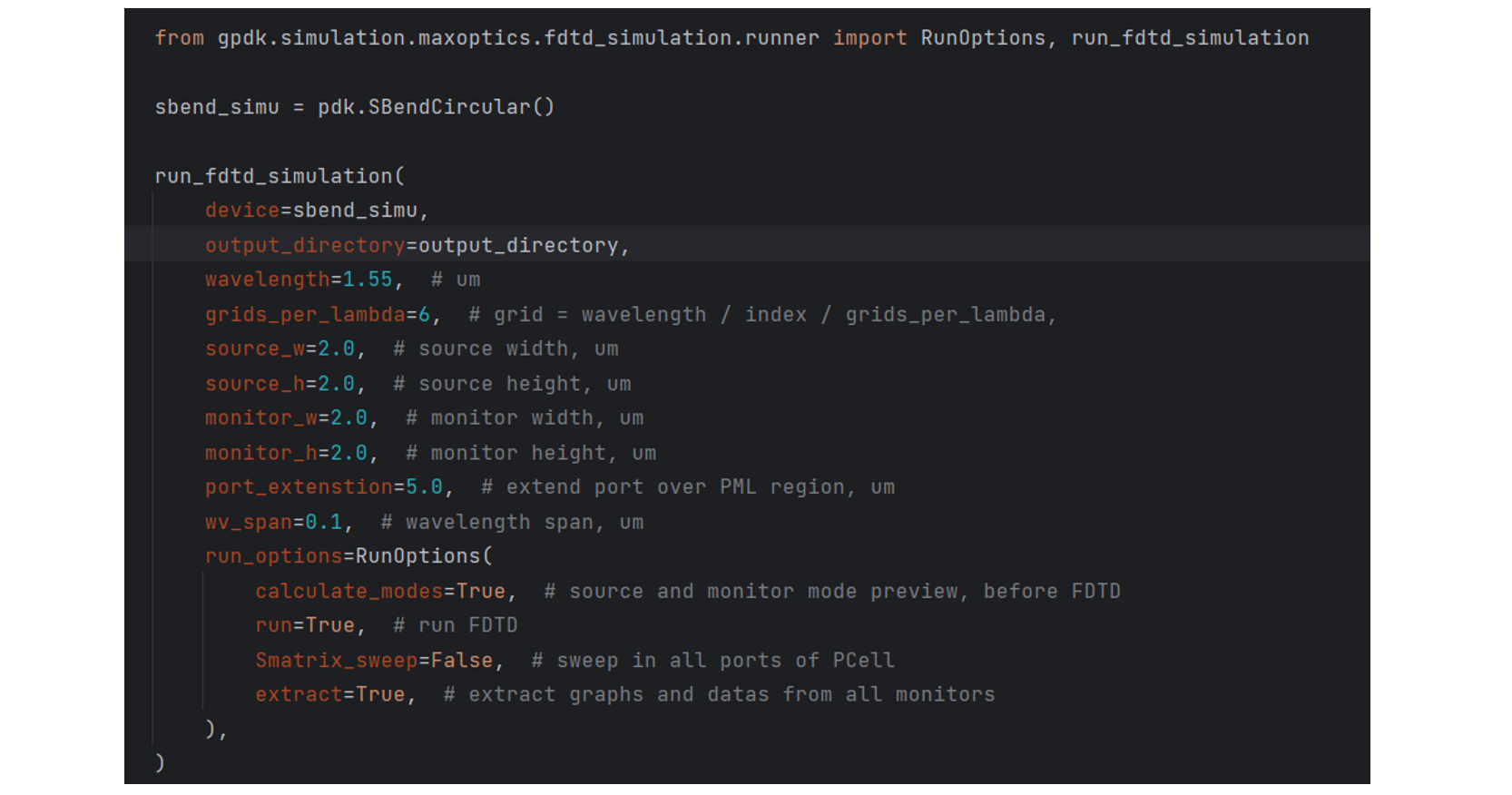

Import RunOptions and run_fdtd_simulation, instantiate a PCell, in this case a Sbend, pass this Sbend into the device of run_fdtd_simulation method, and set some relevant simulation parameters.

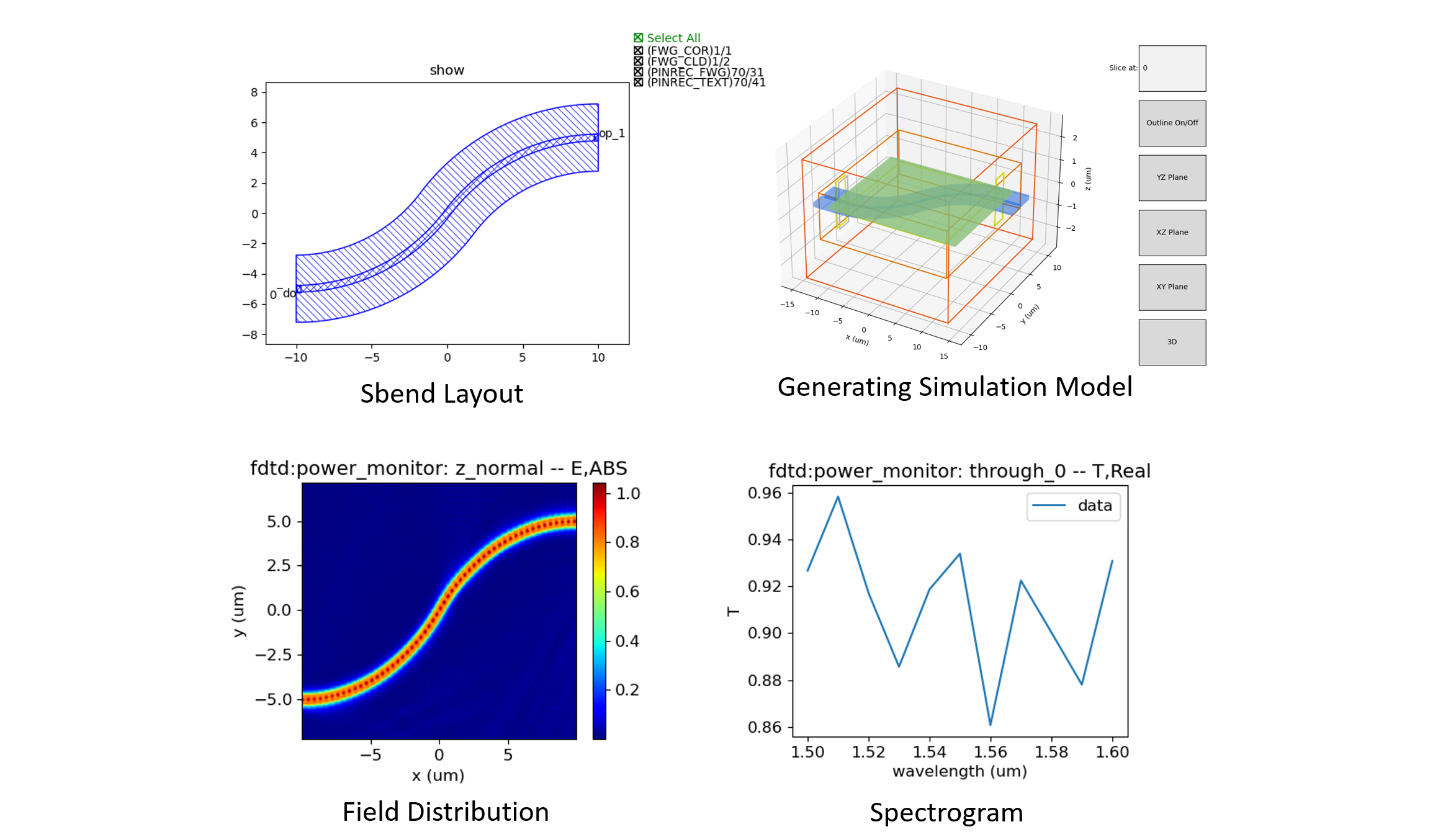

Run this file, it will generate the layout of the Sbend first, according to the layout in Max-Optics FDTD for modelling, after the simulation, it will save the relevant results, as shown in the following figure:
Interface script description:
Importing some libraries, make sure you have a Max-Optics FDTD licence.
import json import math import os import time from pathlib import Path from typing_extensions import Any, Dict, NamedTuple, cast from gpdk.technology.wg import CONST import fnpcell.all as fp from gpdk import all as pdk from gpdk.technology import get_technology from gpdk.util import port_util import maxoptics_sdk.all as mo # type: ignore from maxoptics_sdk.helper import timed, with_path # type: ignore
Sets the information for each layer and the location of the gds_file. And extend the port of the device, set the information of the extended layer and the position of gds_file_extend.
def build_gds(*, device: fp.PCell, extend_length: float = 5.0, output_directory: Path): # --- generate device_simu.gds --- gds_file = output_directory / "simu_json_gds" / f"{device.name}_simu.gds" simu_library = fp.Library() TECH = get_technology() fwg_cor = device.polygon_set(layer=TECH.LAYER.FWG_COR) fwg_cld = device.polygon_set(layer=TECH.LAYER.FWG_CLD) fwg_tre = device.polygon_set(layer=TECH.LAYER.FWG_TRE) fwg_simu = fp.el.PolygonSet((fwg_cld.region - fwg_cor.region) | fwg_tre.region, layer=TECH.LAYER.FWG_SIMU) swg_cor = device.polygon_set(layer=TECH.LAYER.SWG_COR) swg_cld = device.polygon_set(layer=TECH.LAYER.SWG_CLD) swg_tre = device.polygon_set(layer=TECH.LAYER.SWG_TRE) swg_simu = fp.el.PolygonSet((swg_cld.region - swg_cor.region) | swg_tre.region, layer=TECH.LAYER.SWG_SIMU) mwg_cor = device.polygon_set(layer=TECH.LAYER.MWG_COR) mwg_cld = device.polygon_set(layer=TECH.LAYER.MWG_CLD) mwg_tre = device.polygon_set(layer=TECH.LAYER.MWG_TRE) mwg_simu = fp.el.PolygonSet((mwg_cld.region - mwg_cor.region) | mwg_tre.region, layer=TECH.LAYER.MWG_SIMU) simu_library += fp.Device(name=f"{device.name}", content=[fwg_simu, swg_simu, mwg_simu], ports=[]) fp.export_gds(simu_library, file=gds_file) # --- generate device_simu.gds --- # --- generate device_simu_extended.gds --- gds_file_extend = output_directory / "simu_json_gds" / f"{device.name}_simu_extended.gds" simu_extend_library = fp.Library() device_extend = pdk.Extended(device=device, lengths={"*": extend_length}, name=f"{device.name}") fwg_cor_extend = device_extend.polygon_set(layer=TECH.LAYER.FWG_COR) fwg_cld_extend = device_extend.polygon_set(layer=TECH.LAYER.FWG_CLD) fwg_tre_extend = device_extend.polygon_set(layer=TECH.LAYER.FWG_TRE) fwg_simu_extend = fp.el.PolygonSet((fwg_cld_extend.region - fwg_cor_extend.region) | fwg_tre_extend.region, layer=TECH.LAYER.FWG_SIMU) swg_cor_extend = device_extend.polygon_set(layer=TECH.LAYER.SWG_COR) swg_cld_extend = device_extend.polygon_set(layer=TECH.LAYER.SWG_CLD) swg_tre_extend = device_extend.polygon_set(layer=TECH.LAYER.SWG_TRE) swg_simu_extend = fp.el.PolygonSet((swg_cld_extend.region - swg_cor_extend.region) | swg_tre_extend.region, layer=TECH.LAYER.SWG_SIMU) mwg_cor_extend = device_extend.polygon_set(layer=TECH.LAYER.MWG_COR) mwg_cld_extend = device_extend.polygon_set(layer=TECH.LAYER.MWG_CLD) mwg_tre_extend = device_extend.polygon_set(layer=TECH.LAYER.MWG_TRE) mwg_simu_extend = fp.el.PolygonSet((mwg_cld_extend.region - mwg_cor_extend.region) | mwg_tre_extend.region, layer=TECH.LAYER.MWG_SIMU) simu_extend_library += fp.Device(name=f"{device.name}", content=[fwg_simu_extend, swg_simu_extend, mwg_simu_extend], ports=[]) fp.export_gds(simu_extend_library, file=gds_file_extend) # --- generate device_simu_extended.gds ---
Calculate the region needed for simulation modelling and set it as a simulation layer (e.g. FWG_SIMU, SWG_SIMU, MWG_SIMU) and generate its gds and json files based on the graphics on the simulation layer.
def build_json( *, device: fp.PCell, output_directory: Path, ): TECH = get_technology() PCell = device fwg_cor = PCell.polygon_set(layer=TECH.LAYER.FWG_COR) fwg_cld = PCell.polygon_set(layer=TECH.LAYER.FWG_CLD) fwg_tre = PCell.polygon_set(layer=TECH.LAYER.FWG_TRE) fwg_simu = fp.el.PolygonSet((fwg_cld.region - fwg_cor.region) | fwg_tre.region, layer=TECH.LAYER.FWG_SIMU) swg_cor = PCell.polygon_set(layer=TECH.LAYER.SWG_COR) swg_cld = PCell.polygon_set(layer=TECH.LAYER.SWG_CLD) swg_tre = PCell.polygon_set(layer=TECH.LAYER.SWG_TRE) swg_simu = fp.el.PolygonSet((swg_cld.region - swg_cor.region) | swg_tre.region, layer=TECH.LAYER.SWG_SIMU) mwg_cor = PCell.polygon_set(layer=TECH.LAYER.MWG_COR) mwg_cld = PCell.polygon_set(layer=TECH.LAYER.MWG_CLD) mwg_tre = PCell.polygon_set(layer=TECH.LAYER.MWG_TRE) mwg_simu = fp.el.PolygonSet((mwg_cld.region - mwg_cor.region) | mwg_tre.region, layer=TECH.LAYER.MWG_SIMU) simu_library = fp.Device(name=f"{device.name}", content=[fwg_simu, swg_simu, mwg_simu], ports=device.ports) device_name = device.name json_name = f"{device_name}_simu.json" gds_name = f"{device_name}_simu.gds" json_path = os.path.join(output_directory, "simu_json_gds", json_name) gds_path = os.path.join(output_directory, "simu_json_gds", gds_name) fp.export_json(content=simu_library, json_file=json_path, library_file=gds_path, explicit_layers=True, explicit_parameters=True) # to delete "*": "<AUTO>" json_data = output_directory / "simu_json_gds" / f"{device_name}_simu.json" with open(json_data) as json_file: parsed_data = cast(Dict[str, Any], json.load(json_file)) if "*" in parsed_data["layers"]: parsed_data["layers"].pop("*") # Convert the modified data back to JSON string with open(json_data, "w") as json_file: json.dump(parsed_data, json_file, indent=4)
The core function, run_fdtd_simulation, is used to call Max-Optics FDTD and automate the modelling and simulation.
@timed @with_path # type: ignore def run_fdtd_simulation( *, device: fp.PCell, # MO setting run_mode: str = "local", wavelength: float = 1.31, grids_per_lambda: int = 6, #Grid density run_options: "RunOptions", monitor_w: float = 2.0, monitor_h: float = 2.0, source_w: float = 2.0, source_h: float = 2.0, port_extension: float = 5.0, wv_span: float = 0.1, output_directory: Path, # LDA setting **kwargs: Any, ):
General Parameters:
This region sets up the simulation parameters and paths, generates GDS and JSON files, and exports the simulation results in various formats.
# region --- 0. General Parameters --- waveform_name = f"wv{wavelength * 1e3}" device_name = device.name device = device simu_name = f"{device_name}_FDTD" time_str = time.strftime("%Y%m%d_%H%M%S", time.localtime()) project_name = f"{simu_name}_{run_mode}_{time_str}" plot_path = output_directory / "simu_output" / "plots" / f"{project_name}" build_gds(device=device, output_directory=output_directory, extend_length=port_extension) build_json(device=device, output_directory=output_directory) gds_file = str(output_directory / "simu_json_gds" / f"{device_name}_simu_extended.gds") # str(...) as MO only accept str, Path is not supported yet port_files = output_directory / "simu_json_gds" / f"{device_name}_simu.json" if port_files.exists(): with open(port_files) as json_file: user = json.load(json_file) else: raise FileNotFoundError(f"{port_files} is not found.") kL = [f"0{k}" for k in range(9)] + ["0A"] export_options = {"export_csv": True, "export_mat": True, "export_zbf": True} # endregion
Project:
Name the project and define the storage path.
# region --- 1. Project --- pj = mo.Project(name=project_name, location=run_mode) # type: ignore # endregion
Material
Create a material object mt and add materials.
# region --- 2. Material --- mt = pj.Material() # type: ignore mt.add_nondispersion(name="Si", data=[(3.47, 0)], order=2) # type: ignore mt.add_nondispersion(name="SiO2", data=[(1.44, 0)], order=2) # type: ignore mt.add_lib(name="Air", data=mo.Material.Air, order=2) # type: ignore # endregion
Waveform
Create and manipulate waveforms, set their properties such as name, center wavelength and span.
# region --- 3. Waveform --- wv = pj.Waveform() # type: ignore wv.add(name=waveform_name, wavelength_center=wavelength, wavelength_span=wv_span) # type: ignore wv_struct = wv[waveform_name] # type: ignore # endregion
Structure
Create a structure with specific geometries and adds corresponding geometries to the structure based on user-defined layer information.
# region --- 4. Structure --- (x_min, y_min), (x_max, y_max) = fp.get_bounding_box(device) st = pj.Structure(mesh_type="curve_mesh", mesh_factor=1.2, background_material=mt["SiO2"]) # type: ignore # create material stack st.add_geometry( # type: ignore name="si_board", type="Rectangle", property={ "geometry": { "x": (x_min + x_max) / 2, "x_span": (x_max - x_min) + 4, "y": (y_min + y_max) / 2, "y_span": (y_max - y_min), "z": 0.05, "z_span": 0.1, }, "material": {"material": mt["Si"], "mesh_order": 2}, }, ) for layer_name in user["layers"]: if user["layers"][layer_name] == "TECH.LAYER.FWG_SIMU": st.add_geometry( # type: ignore name="si_etch", type="gds_file", property={ "general": {"path": gds_file, "cell_name": f"{device.name}", "layer_name": (1, 0)}, "geometry": {"x": 0, "y": 0, "z": 0, "z_span": 0.2}, "material": {"material": mt["SiO2"], "mesh_order": 2}, }, ) if user["layers"][layer_name] == "TECH.LAYER.SWG_SIMU": st.add_geometry( # type: ignore name="si_etch", type="gds_file", property={ "general": {"path": gds_file, "cell_name": f"{device.name}", "layer_name": (2, 0)}, "geometry": {"x": 0, "y": 0, "z": 0.05, "z_span": 0.1}, "material": {"material": mt["SiO2"], "mesh_order": 2}, }, ) if user["layers"][layer_name] == "TECH.LAYER.MWG_SIMU": st.add_geometry( # type: ignore name="si_etch", type="gds_file", property={ "general": {"path": gds_file, "cell_name": f"{device.name}", "layer_name": (3, 0)}, "geometry": {"x": 0, "y": 0, "z": 0.05, "z_span": 0.1}, "material": {"material": mt["SiO2"], "mesh_order": 2}, }, ) # endregion
Boundary
Set the geometric features and boundary types for the boundary object, and configures parameters related to PML.
# region --- 5. Boundary --- st.OBoundary( # type: ignore property={ "geometry": { "x": (x_min + x_max) / 2, "x_span": (x_max - x_min) + 4, "y": (y_min + y_max) / 2, "y_span": (y_max - y_min) + 4, "z": 0, "z_span": monitor_h, }, "boundary": {"x_min": "PML", "x_max": "PML", "y_min": "PML", "y_max": "PML", "z_min": "PML", "z_max": "PML"}, "general_pml": { "pml_same_settings": True, "pml_layer": 6, "pml_kappa": 2, "pml_sigma": 0.8, "pml_polynomial": 3, "pml_alpha": 0, "pml_alpha_polynomial": 1, }, } ) # endregion
ModeSource
Add a mode source named “source” to the source object src, with type “mode_source”, propagating along the positive x-axis. Set the mode selection to “user_select”, and choose the waveform structure wv_struct. Configure geometric parameters, including the x, y, and z coordinates, as well as their spans.
# region --- 7. ModeSource --- src = pj.Source() # type: ignore ports = {info["name"]: info for info in user["ports"]} if run_options.run and not (run_options.Smatrix_sweep): src.add( # type: ignore name="source", type="mode_source", axis="x_forward", property={ "general": { # 'amplitude': 1, 'phase': 0, 'mode_index': 0, 'rotations': {'theta': 0, 'phi': 0, 'rotation_offset': 0} "mode_selection": "user_select", "waveform": {"waveform_id_select": wv_struct}, }, "geometry": { "x": ports["op_0"]["position"][0] - 1, "x_span": 0, "y": ports["op_0"]["position"][1], "y_span": source_w, "z": 0, "z_span": source_h, }, }, ) # endregion
Port
Create a port object, setting the waveform id and the source port. If S-matrix scanning is required, calculate the number of ports on the device, iterate through each port, and add the corresponding port based on its orientation.
# region --- 8. Port --- pt = pj.Port(property={"waveform_id": wv_struct, "source_port": "port_left"}) # type: ignore if run_options.Smatrix_sweep: port_count = len(device.ports) # port_angle = [] for i in range(port_count): if math.degrees(device[f"op_{i}"].orientation) == 180: pt.add( # type: ignore name=f"port_{i}_left", type="fdtd_port", property={ "geometry": { "x": ports[f"op_{i}"]["position"][0] + 1, "x_span": 0, "y": ports[f"op_{i}"]["position"][1], "y_span": monitor_w, "z": 0, "z_span": monitor_h, }, "modal_properties": { "general": { "inject_axis": "x_axis", "direction": "forward", "mode_selection": "fundamental", } }, }, ) if math.degrees(device[f"op_{i}"].orientation) == 0: pt.add( # type: ignore name=f"port_{i}_right", type="fdtd_port", property={ "geometry": { "x": ports["op_1"]["position"][0] - 1, "x_span": 0, "y": ports["op_1"]["position"][1], "y_span": monitor_w, "z": 0, "z_span": monitor_h, }, "modal_properties": { "general": { "inject_axis": "x_axis", "direction": "backward", "mode_selection": "fundamental", } }, }, ) # endregion
Monitor
Add a monitor to the simulation.
9.0 GlobalMonitor
Create a global option monitor named “Global Option” and set its properties to control frequency power-related parameters.
# region --- 9.0 GlobalMonitor --- # Create a global option monitor named "Global Option" and set its properties to control frequency power-related parameters. mn = pj.Monitor() # type: ignore mn.add( # type: ignore name="Global Option", type="global_option", property={ "frequency_power": { # 'sample_spacing': 'uniform', 'use_wavelength_spacing': True, # ['min_max','center_span'] "spacing_type": "wavelength", "spacing_limit": "center_span", "wavelength_center": wavelength, "wavelength_span": 0.1, "frequency_points": 11, } }, ) # endregion
9.1 TimeMonitor
Add a time monitor if necessary.
# region --- 9.1 TimeMonitor --- # mn.add(name='time_monitor1', type='time_monitor', # property={'general': { # 'stop_method': 'end_of_simulation', 'start_time': 0, 'stop_time': 100, 'number_of_snapshots': 0}, # 'geometry': {'monitor_type': 'point', 'x': 0, 'x_span': 0, 'y': 0, 'y_span': 0, 'z': 0, 'z_span': 0}, # 'advanced': {'sampling_rate': {'min_sampling_per_cycle': 10}}}) # endregion
9.2 PowerMonitor
Add PowerMonitors.
9.2.1 z_normal
Set up a power monitor named “z_normal” and specifie the frequency range, precision, and geometric parameters of the monitoring area, enabling monitoring of power distribution on a 2D z-normal plane.
# region --- 9.2.1 z_normal --- mn.add( # type: ignore name="z_normal", type="power_monitor", property={ "general": { "frequency_profile": {"wavelength_center": wavelength, "wavelength_span": 0.1, "frequency_points": 3}, }, "geometry": { "monitor_type": "2d_z_normal", "x": (x_min + x_max) / 2, "x_span": (x_max - x_min) - 0.1, "y": (y_min + y_max) / 2, "y_span": (y_max - y_min) - 0.1, "z": 0, "z_span": 0, }, }, ) # endregion
9.2.2 Through
Add power monitors for each right-side port to monitor the power distribution of optical signals at those ports and performs mode expansion and calculation.
# region --- 9.2.2 Through --- left_port_count = len(port_util.get_left_ports(device)) right_port_count = len(port_util.get_right_ports(device)) for i in range(right_port_count): mn.add( # type: ignore name=f"through_{i}", type="power_monitor", property={ "general": { "frequency_profile": {"wavelength_center": wavelength, "wavelength_span": 0.1, "frequency_points": 11}, }, "geometry": { "monitor_type": "2d_x_normal", "x": ports[f"op_{left_port_count + i}"]["position"][0] + 1, "x_span": 0, "y": ports[f"op_{left_port_count + i}"]["position"][1], "y_span": monitor_w, "z": 0, "z_span": monitor_h, }, "mode_expansion": { "enable": True, "direction": "positive", "mode_calculation": { "mode_selection": "user_select", "mode_index": [0, 1, 2, 3], "override_global_monitor_setting": {"wavelength_center": wavelength, "wavelength_span": 0.1, "frequency_points": 11}, }, }, }, ) # endregion
9.2.3 Reflection
Add a power monitor to monitor the reflection of optical signals and sets the frequency profile and geometric parameters for the monitoring region.
# region --- 9.2.3 Reflection --- mn.add( # type: ignore name="reflection", type="power_monitor", property={ "general": {"frequency_profile": {"wavelength_center": wavelength, "wavelength_span": 0.1, "frequency_points": 11}}, "geometry": { "monitor_type": "2d_x_normal", "x": ports["op_0"]["position"][0] - 1.5, "x_span": 0, "y": ports["op_0"]["position"][1], "y_span": monitor_w, "z": 0, "z_span": monitor_h, }, }, ) # endregion # endregion # endregion
Simulation
A simulation object named “simu” is created, and two sub-objects are added to it.
The first sub-object is an FDTD simulator type. It configures general simulation properties such as simulation time and mesh settings, including mesh type, mesh accuracy, and minimum mesh step size.
The second sub-object is a simulator for S-matrix scanning. It specifies the ports for conducting S-matrix scanning, including the left-side port, the upper-right port, and the lower-right port. This sub-object will perform S-matrix scanning based on the primary simulator, which is the first sub-object.
# region --- 10. Simulation --- simu = pj.Simulation() # type: ignore simu.add( # type: ignore name=simu_name, type="FDTD", property={ "general": { "simulation_time": 10000, }, "mesh_settings": { "mesh_type": "auto_non_uniform", "mesh_accuracy": {"cells_per_wavelength": grids_per_lambda}, "minimum_mesh_step_settings": {"min_mesh_step": 1e-4}, }, # 'advanced_options': {'auto_shutoff': {'auto_shutoff_min': 1.00e-4, 'down_sample_time': 200}}, # 'thread_setting': {'thread': 4} }, ) if run_options.Smatrix_sweep: simu.add( # type: ignore name=f"{simu_name}_matrix_sweep", type="FDTD:smatrix", property={ "simulation_name": simu_name, "s_matrix_setup": [ {"port": "port_left", "active": True}, {"port": "port_right_up", "active": True}, {"port": "port_right_bot", "active": True}, ], }, ) # endregion.
Structure Show
Call the structure_show method to generate and save the structural image. Display the 3D structural image using the matplotlib library. Run the simulation index to generate and save images of the specified region.
# region --- 11. Structure Show --- st.structure_show( # type: ignore fig_type="png", show=False, savepath=str(plot_path / f"{kL[0]}{simu_name}"), simulation_name=simu_name, ) simu[simu_name].show3d(show_with="matplotlib") # type: ignore # endregion simu[simu_name].run_index( # type: ignore name=f"{simu_name}_port0", savepath=str(plot_path / f"{kL[-1]}_Preview_Index_x=0"), # export_csv=False, show=False, property={ "geometry": {"x": ports["op_0"]["position"][0], "x_span": 0, "y": ports["op_0"]["position"][1], "y_span": monitor_w, "z": 0, "z_span": monitor_h} }, )
Calculate Mode
First, it checks whether mode calculation is required. If so, it adds a simulation object, sets the relevant properties, runs the simulation, and retrieves the results. Finally, it extracts the calculated modes’ data and saves them to the specified path.
# region --- 12. Calculate Mode --- if run_options.calculate_modes: simu.add( # type: ignore name=simu_name + "_cal_mode", simulation_name=simu_name, source_name="source", type="mode_selection:user_select", property={ "modal_analysis": { "calculate_modes": True, "mesh_structure": True, "wavelength": wavelength, "number_of_trial_modes": 20, "search": "max_index", "calculate_group_index": True, } }, ) src_res = simu[f"{simu_name}_cal_mode"].run() # type: ignore src_res.extract( # type: ignore data="calculate_modes", savepath=str(plot_path / f"{kL[2]}_Preview_SourceMode"), attribute="E", mode=0, real=True, imag=True, **export_options, show=False, ) # endregion
Run
The settings related to Run are described in detail in the following code.
# region --- 13. Run --- # check whether a simulation needs to be run and if S-matrix sweep is not required. # If these conditions are met, execute the FDTD simulation and extract data from the simulation result. if run_options.run and not (run_options.Smatrix_sweep): fdtd_res = simu[simu_name].run() # type: ignore # region --- 13.3 See Result --- """ 02_source_modeprofile """ fdtd_res.extract( # type: ignore data="fdtd:mode_source_mode_info", savepath=str(plot_path / f"{kL[2]}_source_modeprofile"), source_name="source", target="intensity", attribute="E", mode=0, real=True, imag=True, **export_options, show=False, ) # ''' 02_monitorT_modeprofile_fdtd ''' # Iterates over the number of right-side ports. # During each iteration, it calls the fdtd_res.extract function to extract fdtd:power_monitor data and saves the results to specified paths. for i in range(right_port_count): fdtd_res.extract( # type: ignore data="fdtd:power_monitor", savepath=str(plot_path / f"{kL[3]}_monitorT_modeprofile_{i}_fdtd"), monitor_name=f"through_{i}", target="intensity", plot_x="y", plot_y="z", attribute="E", wavelength=f"{wavelength}", real=True, imag=False, **export_options, show=False, ) # ''' 03_TransVsLambda_power ''' # Extract power monitor data from the FDTD simulation results and save these data as CSV and MAT format files to the specified path. fdtd_res.extract( # type: ignore data="fdtd:power_monitor", savepath=str(plot_path / f"{kL[6]}_TransVsLambda_power"), monitor_name=f"through_{i}", target="line", plot_x="wavelength", attribute="T", real=True, imag=False, export_csv=True, export_mat=True, show=False, ) # ''' 03_TransVsLambda_mode=1 ''' # Extract mode expansion data from the FDTD simulation results and save these data as CSV and MAT format files to the specified path. fdtd_res.extract( # type: ignore data="fdtd:mode_expansion", savepath=str(plot_path / f"{kL[5]}_TransVsLambda_mode=0"), monitor_name=f"through_{i}", target="line", plot_x="wavelength", mode=0, attribute="T_forward", real=True, imag=True, export_csv=True, export_mat=True, show=False, ) # ''' 05_TransVsOrder ''' # Extract mode expansion data from the FDTD simulation results and save these data as CSV and MAT format files to the specified path. fdtd_res.extract( # type: ignore data="fdtd:mode_expansion", savepath=str(plot_path / f"{kL[4]}_TransVsOrder_{i}"), monitor_name=f"through_{i}", target="line", plot_x="mode", wavelength=f"{wavelength}", attribute="T_forward", real=True, imag=True, export_csv=True, export_mat=True, show=False, ) # ''' 06_mode_info ''' # Extract mode expansion mode information data from the FDTD simulation and save the extracted results as files. fdtd_res.extract( # type: ignore data="fdtd:mode_expansion_mode_info", savepath=str(plot_path / f"{kL[3]}_me_throughmode_{i}_info"), monitor_name=f"through_{i}", target="intensity", attribute="E", mode=0, wavelength=f"{wavelength}", real=True, imag=True, **export_options, show=False, ) """ 03_RlVsLambda_power """ # Extract power monitor data from the FDTD simulation and save the extracted results as files. fdtd_res.extract( # type: ignore data="fdtd:power_monitor", savepath=str(plot_path / f"{kL[7]}_RlVsLambda_power"), monitor_name=f"reflection", target="line", plot_x="wavelength", attribute="T", real=True, imag=False, export_csv=True, export_mat=True, show=False, ) """ 04_top_profile """ # Extract power monitor data from the FDTD simulation results and save these data as files to a specific path, # including the real and imaginary parts of the electric field plotted at a specified location. fdtd_res.extract( # type: ignore data="fdtd:power_monitor", savepath=str(plot_path / f"{kL[1]}_top_profile"), monitor_name="z_normal", target="intensity", plot_x="x", plot_y="y", attribute="E", real=True, imag=True, **export_options, show=False, ) # endregion # endregion
matrix_sweep
Perform a parameter sweep of the S-matrix and save the real and imaginary parts of the scan results as CSV and MAT files to a specified path.
# region --- 14. matrix_sweep if run_options.Smatrix_sweep: smatrix_res = simu[f"{simu_name}_matrix_sweep"].run() # type: ignore smatrix_res.extract( # type: ignore data="smatrix_sweep", savepath=str(plot_path / f"{kL[8]}_smatrix_sweep"), target="line", plot_x="wavelength", real=True, imag=True, export_csv=True, export_mat=True, show=False, ) # endregion
