BendEuler

This section will introduce customizing the basic components in gpdk from the beginning, using BendEuler as an example. The full script can be found in gpdk > components > bend > bend_euler.py.

Full script

from functools import cached_property
from pathlib import Path
from typing import Optional, Tuple

from fnpcell import all as fp
from gpdk.technology import get_technology
from gpdk.technology.interfaces import CoreCladdingWaveguideType



class BendEuler(fp.IWaveguideLike, fp.PCell):


    degrees: float = fp.DegreeParam(default=90, min=-180, max=180, doc="Bend angle in degrees")
    radius_eff: float = fp.PositiveFloatParam(required=False, doc="Bend radius_eff")
    radius_min: float = fp.PositiveFloatParam(required=False, doc="Bend radius_min")
    p: Optional[float] = fp.PositiveFloatParam(required=False, max=1, doc="Bend parameter")
    l_max: Optional[float] = fp.PositiveFloatParam(required=False, doc="Bend Lmax")
    waveguide_type: fp.IWaveguideType = fp.WaveguideTypeParam(doc="Waveguide parameters")
    port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=["op_0", "op_1"])

    def _default_radius_eff(self):
        if self.radius_min is None:
            return 10

    def _default_waveguide_type(self):
        return get_technology().WG.FWG.C.WIRE

    def __post_pcell_init__(self):
        assert self.radius_eff is not None or self.radius_min is not None, "either radius_eff or radius_min must be provided"

    @cached_property
    def raw_curve(self):
        radius_min = self.radius_min
        if radius_min is None:
            radius_min = self.radius_eff
        curve = fp.g.EulerBend(radius_min=radius_min, degrees=self.degrees, p=self.p, l_max=self.l_max)
        if self.radius_min is None and not fp.is_close(curve.radius_eff, self.radius_eff):
            curve = curve.scaled(self.radius_eff / curve.radius_eff)
        return curve

    def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
        insts, elems, ports = super().build()
        wg = self.waveguide_type(curve=self.raw_curve).with_ports(self.port_names)
        insts += wg
        ports += wg.ports
        return insts, elems, ports



class BendEuler90(BendEuler):

    degrees: float = fp.DegreeParam(default=90, min=90, max=90, locked=True, doc="Bend angle in degrees")
    waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType, doc="Waveguide parameters")
    slab_square: bool = fp.BooleanParam(required=False, default=False, doc="whether draw a square clad")

    def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
        insts, elems, ports = super().build()
        waveguide_type = self.waveguide_type

        if self.slab_square:
            r = self.raw_curve.radius_eff
            w = r + waveguide_type.cladding_width / 2
            x = w / 2
            y = (r - waveguide_type.cladding_width / 2) / 2
            elems += fp.el.Rect(width=w, height=w, center=(x, y), layer=waveguide_type.cladding_layer)

        return insts, elems, ports



class BendEuler90_FWG_C_WIRE(BendEuler90, locked=True):
    l_max: Optional[float] = fp.PositiveFloatParam(default=5, doc="Bend Lmax")
    radius_min: float = fp.PositiveFloatParam(default=3.225, doc="Bend radius_min")
    waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType, doc="Waveguide parameters")
    slab_square: bool = fp.BooleanParam(required=False, default=True, doc="whether draw a square clad")

    def _default_waveguide_type(self):
        return get_technology().WG.FWG.C.WIRE

    @fp.cache()
    def sim_model(self, env: fp.ISimEnv):
        return fp.sim.ExternalFileModel(Path("BendCircular90_radius=10").with_suffix(".dat"))



class BendEuler90_FWG_C_EXPANDED(BendEuler90, locked=True):
    l_max: Optional[float] = fp.PositiveFloatParam(default=10, doc="Bend Lmax")
    radius_min: float = fp.PositiveFloatParam(default=3.4, doc="Bend radius_min")
    waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType, doc="Waveguide parameters")
    slab_square: bool = fp.BooleanParam(required=False, default=True, doc="whether draw a square clad")

    def _default_waveguide_type(self):
        return get_technology().WG.FWG.C.EXPANDED

    @fp.cache()
    def sim_model(self, env: fp.ISimEnv):
        return fp.sim.ExternalFileModel(Path("BendCircular90_radius=10").with_suffix(".dat"))


if __name__ == "__main__":
    from gpdk.util.path import local_output_file

    gds_file = local_output_file(__file__).with_suffix(".gds")
    library = fp.Library()

    TECH = get_technology()
    # =======================================================================
    # fmt: off

    library += BendEuler(radius_min=15)
    library += BendEuler90()
    library += BendEuler90_FWG_C_EXPANDED()

    # fmt: on
    # =============================================================
    fp.export_gds(library, file=gds_file)
    # fp.plot(library)

Section Script Description

1. Import function packages:

   To customize the basic components(straight waveguide/bends) in gpdk, several packages needs to be imported. cached_property, Path, Optional, Tuple are for data processing. fnpcell, get_technology, CoreCladdingWaveguideType are for process information, data format , etc:

   from functools import cached_property
   from pathlib import Path
   from typing import Optional, Tuple

   from fnpcell import all as fp
   from gpdk.technology import get_technology
   from gpdk.technology.interfaces import CoreCladdingWaveguideType


2. Define a new PCell, and a custom class (here will be BendEuler):

   Inherit the new PCell via fp.PCell & fp.IWaveguideLike in fnpcell, which is a new basic component in gpdk. fp.IWaveguideLike is the parent class of all basic components in fnpcell, and it includes the base setting of the components.

   class BendEuler(fp.IWaveguideLike, fp.PCell):


3. Define the properties and methods in the BendEuler class

   1. Define user-definable parameters:

      degrees: float = fp.DegreeParam(default=90, min=-180, max=180, doc="Bend angle in degrees")
      radius_eff: float = fp.PositiveFloatParam(required=False, doc="Bend radius_eff")
      radius_min: float = fp.PositiveFloatParam(required=False, doc="Bend radius_min")
      p: Optional[float] = fp.PositiveFloatParam(required=False, max=1, doc="Bend parameter")
      l_max: Optional[float] = fp.PositiveFloatParam(required=False, doc="Bend Lmax")
      waveguide_type: fp.IWaveguideType = fp.WaveguideTypeParam(doc="Waveguide parameters")
      port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=["op_0", "op_1"])


      • degrees: float = fp.DegreeParam() defines the bend angle of the Euler bend, default is set to 90 when degrees is not set by the user, the range is set from -180 to 180.

      • radius_eff and radius_min defines the bend radius of the Euler bend.

      • p and l_max are parameters often used to define the Euler Bend in equation, the range can be set by the user if needed.

      • waveguide_type: fp.IWaveguideType = fp.WaveguideTypeParam() is used to define the type of the waveguide.

      • port_names: fp.IPortOptions = fp.PortOptionsParam() is used to define the number of ports of the component, since it is a bend, so there will be one port on the left and another on the right, the total number is count=2 . Secondly, the ports are named, and the default is default=("op_0", "op_1"), the user can set it by himself.

   2. Define self methods to get the default setting of BendEuler

      • To get the default radius of the bend:

        def _default_radius_eff(self):
              if self.radius_min is None:
                  return 10


      • To get the default waveguide type of the bend:

        def _default_waveguide_type(self):
              return get_technology().WG.FWG.C.WIRE


      • Assert error message before running the full code when radius_eff or radius_min is not provided

        def __post_pcell_init__(self):
            assert self.radius_eff is not None or self.radius_min is not None, "either radius_eff or radius_min must be provided"


      • Create the Euler bend by generating the Euler curve via fp.g.EulerBend, where the user-defined parameters are used in the curve. @cached_property is a decorator that converts a class method into a property whose value is calculated only once and then cached like a regular attribute

        @cached_property
        def raw_curve(self):
            radius_min = self.radius_min
            if radius_min is None:
                radius_min = self.radius_eff
            curve = fp.g.EulerBend(radius_min=radius_min, degrees=self.degrees, p=self.p, l_max=self.l_max)
            if self.radius_min is None and not fp.is_close(curve.radius_eff, self.radius_eff):
                curve = curve.scaled(self.radius_eff / curve.radius_eff)
            return curve


   3. Define the build method to build BendEuler

      • Instances, elements and ports are usually used in device cells, i.e. calls to other cell instances, graphics in this cell and device ports.

        The three elements in the device are implemented in the PCell definition by calling the build function module in the parent class PCell

      def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
          insts, elems, ports = super().build()


      • Define the type of waveguide used in the bend, as well as the curve and add the ports generated from the above script.

        Note

        The cell we created here using waveguide_type(curve=raw_curve) is not applicable for cell BendEuler to run post-simulation process due to the nonexistance of the simulation model. Users can call the components which the simulation model is already defined, e.g. Straight() and initiate to the cell if they need to run post-simulation.

      wg = self.waveguide_type(curve=self.raw_curve).with_ports(self.port_names)


      • Initiate wg and ports and return the instances, elements, and ports in the component cell.

      insts += wg
      ports += wg.ports
      return insts, elems, ports


   4. Use the EulerBend class to create component cells and output the layout

      • Import the package to generate output layout file under the same file of the EulerBend

      from gpdk.util.path import local_output_file


      • Refer to the path where the top generated gds file is saved. Then obtain all device process information.

      gds_file = local_output_file(__file__).with_suffix(".gds")
      library = fp.Library()
      TECH = get_technology()


      • Create a EulerBend component defined with default parameters

      library += BendEuler()


      • Export GDS files

      fp.export_gds(library, file=gds_file)


Extend PCells from BendEuler

Once we have built the class BendEuler, it is convenient to generate more child class that inherits from BendEuler. In bend_euler.py example, BendEuler90 is created based on parent class BendEuler, and BendEuler90_FWG_C_WIRE, BendEuler90_FWG_C_EXPANDED are then generated based on parent class BendEuler90.

1. BendEuler90:

   class BendEuler90(BendEuler):

       degrees: float = fp.DegreeParam(default=90, min=90, max=90, locked=True, doc="Bend angle in degrees")
       waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType, doc="Waveguide parameters")
       slab_square: bool = fp.BooleanParam(required=False, default=False, doc="whether draw a square clad")

       def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
           insts, elems, ports = super().build()
           waveguide_type = self.waveguide_type

           if self.slab_square:
               r = self.raw_curve.radius_eff
               w = r + waveguide_type.cladding_width / 2
               x = w / 2
               y = (r - waveguide_type.cladding_width / 2) / 2
               elems += fp.el.Rect(width=w, height=w, center=(x, y), layer=waveguide_type.cladding_layer)

           return insts, elems, ports


   • In the above script we can see that degrees is set to be 90 rather than a number of range, so the bend will be set to be 90 degree.

     degrees: float = fp.DegreeParam(default=90, min=90, max=90, locked=True, doc="Bend angle in degrees")


   • A slab square surrounding the bend waveguide is built in class EulerBend90, users can set slab_square=True to decide if needed:

     slab_square: bool = fp.BooleanParam(required=False, default=False, doc="whether draw a square clad")

     def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
         insts, elems, ports = super().build()
         waveguide_type = self.waveguide_type

         if self.slab_square:
             r = self.raw_curve.radius_eff
             w = r + waveguide_type.cladding_width / 2
             x = w / 2
             y = (r - waveguide_type.cladding_width / 2) / 2
             elems += fp.el.Rect(width=w, height=w, center=(x, y), layer=waveguide_type.cladding_layer)

         return insts, elems, ports


2. BendEuler90_FWG_C_WIRE:

   class BendEuler90_FWG_C_WIRE(BendEuler90, locked=True):
       l_max: Optional[float] = fp.PositiveFloatParam(default=5, doc="Bend Lmax")
       radius_min: float = fp.PositiveFloatParam(default=3.225, doc="Bend radius_min")
       waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType, doc="Waveguide parameters")
       slab_square: bool = fp.BooleanParam(required=False, default=True, doc="whether draw a square clad")

       def _default_waveguide_type(self):
           return get_technology().WG.FWG.C.WIRE

       @fp.cache()
       def sim_model(self, env: fp.ISimEnv):
           return fp.sim.ExternalFileModel(Path("BendCircular90_radius=10").with_suffix(".dat"))


   • BendEuler90_FWG_C_WIRE is built to create automatically waveguide routing for circuit design. By setting l_max and radius_min to a specific value, BendEuler90_FWG_C_WIRE can be defined in several routing selections to simplify the work for users.

   • Default waveguide type can be adjusted by setting _default_waveguide_type(self) to another type, such as FWG.C.EXPANDED.

   • Simulation model is also define here by the below script, for more details, please refer to Tutorials / Simulation

Export GDS Layout

Run bend_euler.py and use layout tool e.g. KLayout to view the generated GDS file, which should be saved under gpdk > components > bend > local.

In the table you can see the three generated instances, BendEuler, BendEuler90 and BendEuler90_FWG_C_EXPANDED.

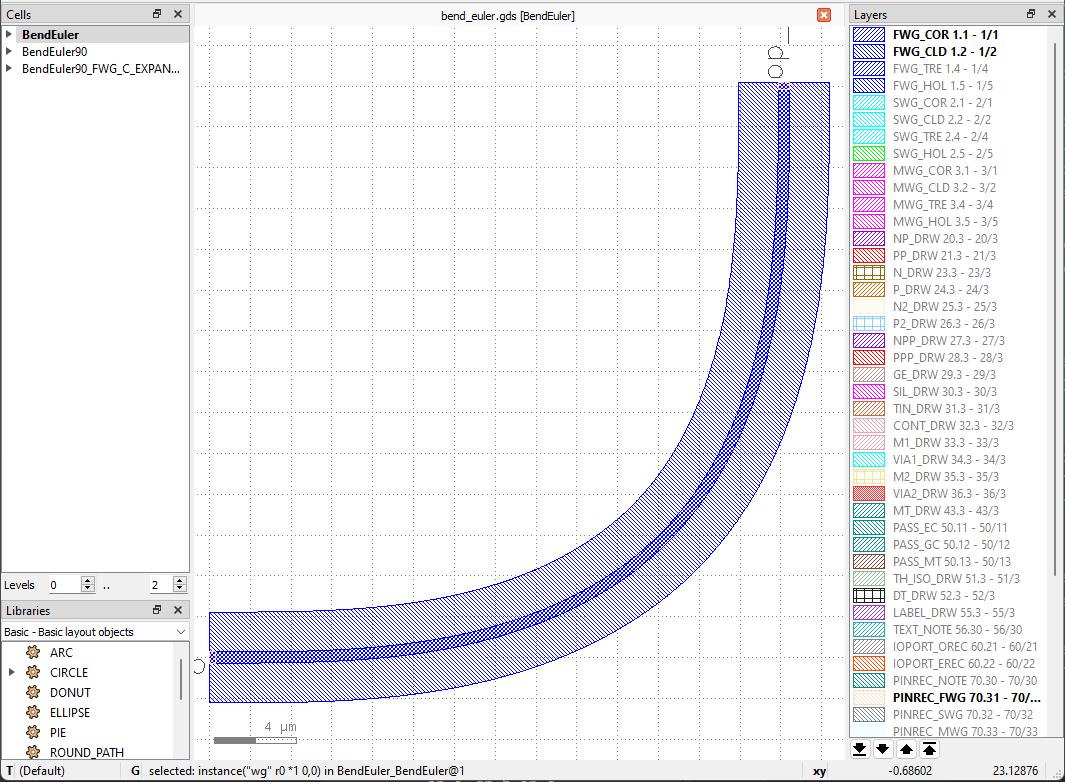

• BendEuler: bend radius is set to be 15, otherwise the layout will be the same as BendEuler90 and will cause PhotoCAD thought of it has the same meaning then only generate the latest cell.

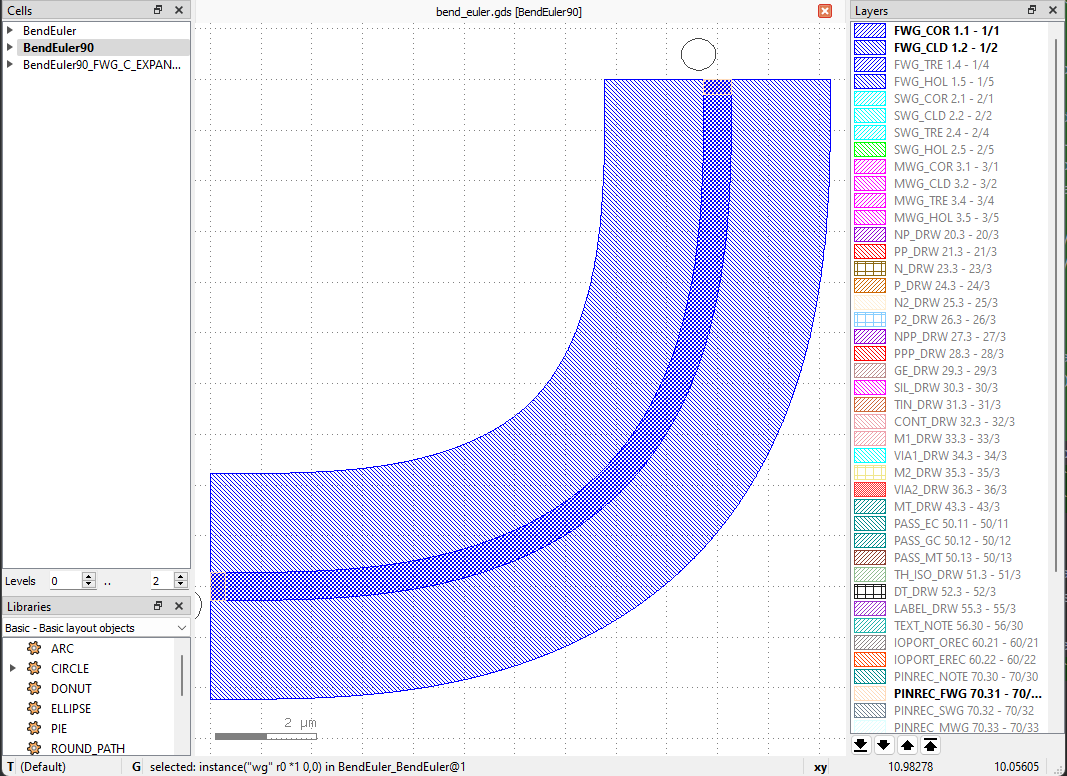

• BendEuler90:

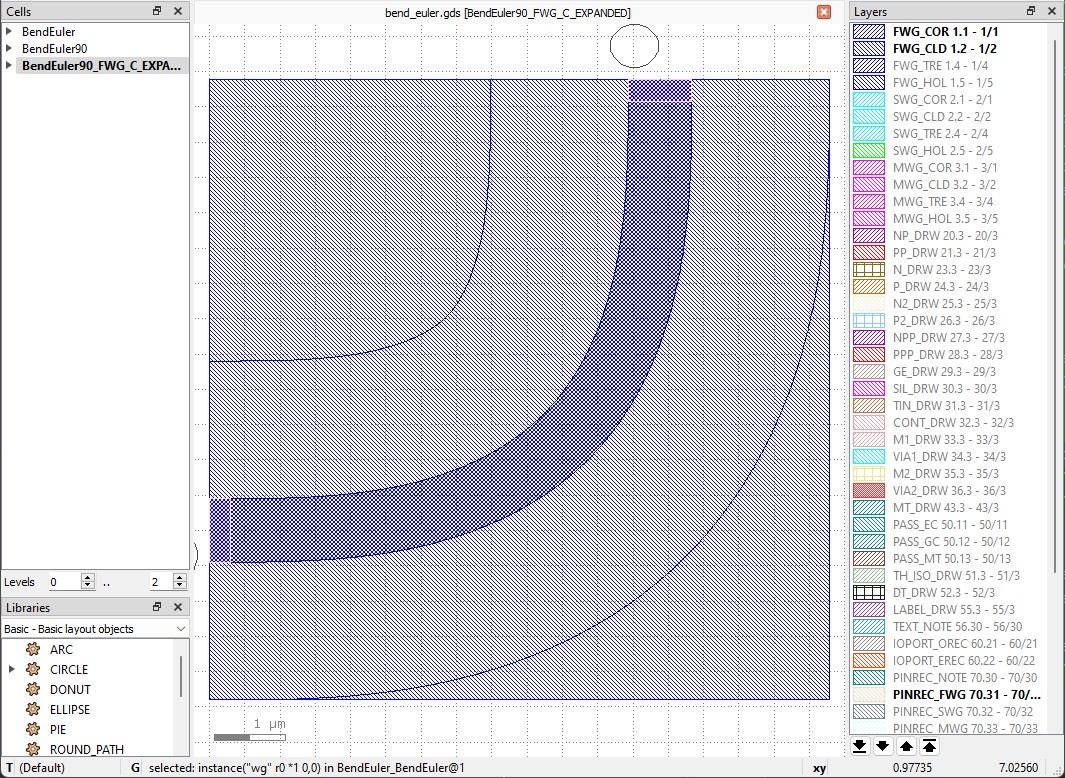

• BendEuler90_FWG_C_EXPANDED: A square was added because default for slab_square in BendEuler90_FWG_C_EXPANDED is True.
