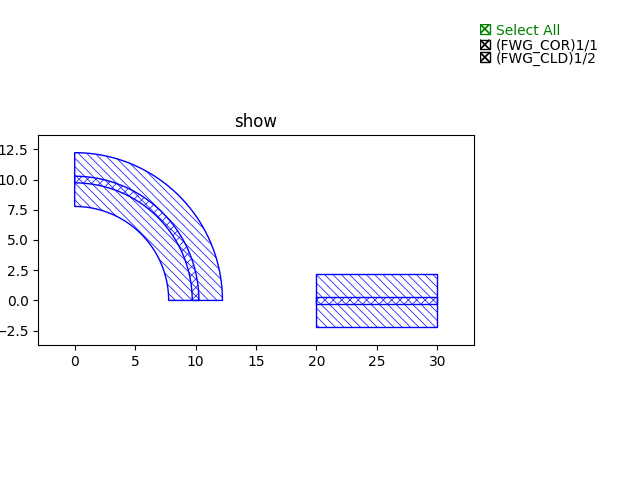

Placing PCell ports

../_images/fpPlaceOriginal.png

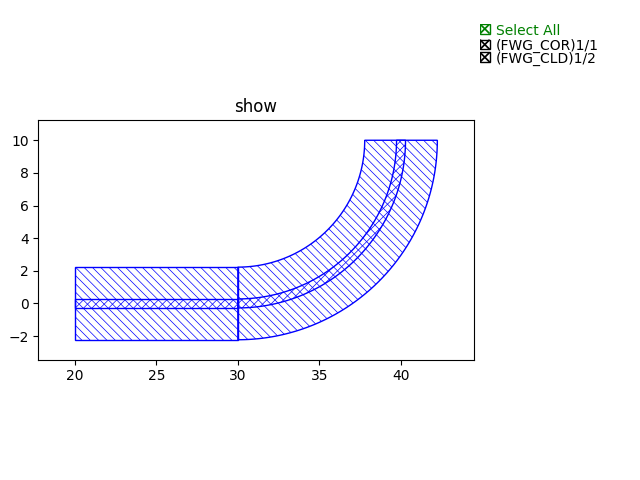

  • new_device_A = fp.place(device_A, “port_A”, at=device_B[”port_B”])

    In this method, the two ports will be connected.

    ../_images/fpPlaceEx1.png

  • new_device_A = fp.place(device_A, “port_A”, at=device_B[”port_B”].position)

    In this method, port_A will be placing at the position of port_B but remaining the port orientation.

    ../_images/fpPlaceEx2.png

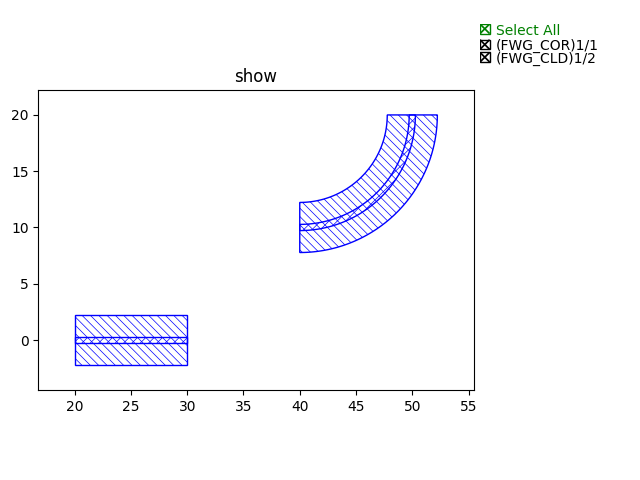

  • new_device_A = fp.place(device_A, “port_A”, at=device_B[”port_B”]).translated(x, y)

    In this method, port_A will first be aligned to port_B and move to (x, y) related to port_B.

    ../_images/fpPlaceEx3.png

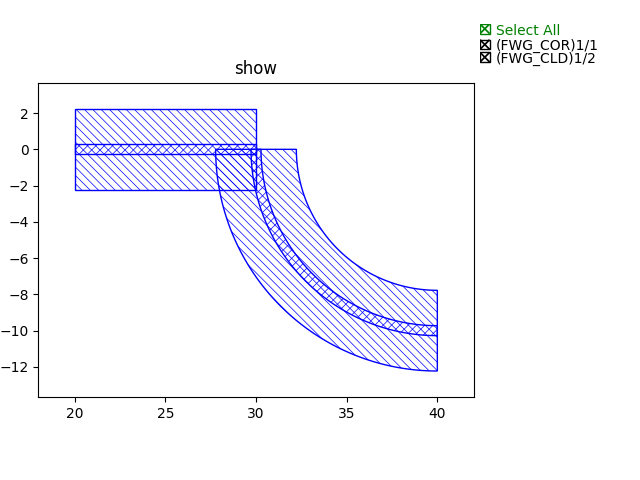

  • new_device_A = fp.place(device_A, “port_A”, at=device_B[”port_B”].rotated(degrees=-90))

    In this method, port_A will be connected to port_B with an angle difference of 90 degrees.

    ../_images/fpPlaceEx4.png
