Taper

A Taper has a structure of different width in two ends. It is commonly used to connect waveguides with different width.

The building steps are as follows:

Import library:

from functools import cached_property
from typing import Tuple

from fnpcell import all as fp
from fnpcell.interfaces import angle_between, distance_between
from gpdk.technology import get_technology, PCell

Define class TaperLinear:

   class TaperLinear(fp.IWaveguideLike, fp.PCell):

       length: float = fp.PositiveFloatParam(default=10)
       left_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
       right_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
       anchor: fp.Anchor = fp.AnchorParam(default=fp.Anchor.CENTER)
       port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=["op_0", "op_1"])

- First, users has to list all parameters they want for this PCell to be adjustable. It is very similar when building a straight waveguide, and the difference between them is that we have to assign the waveguide type of the two ends (left and right) ::

       def _default_left_type(self):
           return get_technology().WG.FWG.C.WIRE

       def _default_right_type(self):
           return get_technology().WG.FWG.C.EXPANDED

- Second, a default parameter will be assigned to some parameters listed above. In this example, the two different default waveguide types of this taper component will be ``FWG.C.WIRE`` on the left and ``FWG.C.EXPANDED`` on the right.::

       @cached_property
       def raw_curve(self):
           return fp.g.Line(
               length=self.length,
               anchor=self.anchor,
           )


- Then, a ``raw_curve`` function is defined to send the length of the ``TaperLinear`` component to the designated waveguide type. It is important to define ``raw_curve`` in every basic cells which will be used in routing functions such as straight waveguides, bends, tapers, transitions. When using ``Linked``, ``LinkBetween`` or any other routing function,  **PhotoCAD** will calculate the length between two ports and assign proper components for routing.::

       def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
           insts, elems, ports = super().build()
           assert self.left_type.is_isomorphic_to(self.right_type), "left_type must be isomorphic to right_type"

           wgt = self.left_type.tapered(taper_function=fp.TaperFunction.LINEAR, final_type=self.right_type)
           wg = wgt(curve=self.raw_curve).with_ports(self.port_names)
           insts += wg
           ports += wg.ports
           return insts, elems, ports

  • Finally, we build up the Taper component by adding instances, elements, and ports information to this class. Note that the two ends of the Taper has to be applying to the same band e.g, FWG.C and SWG.C and also same waveguide types since we set left/right type has to be CoreCladdingWaveguideType.

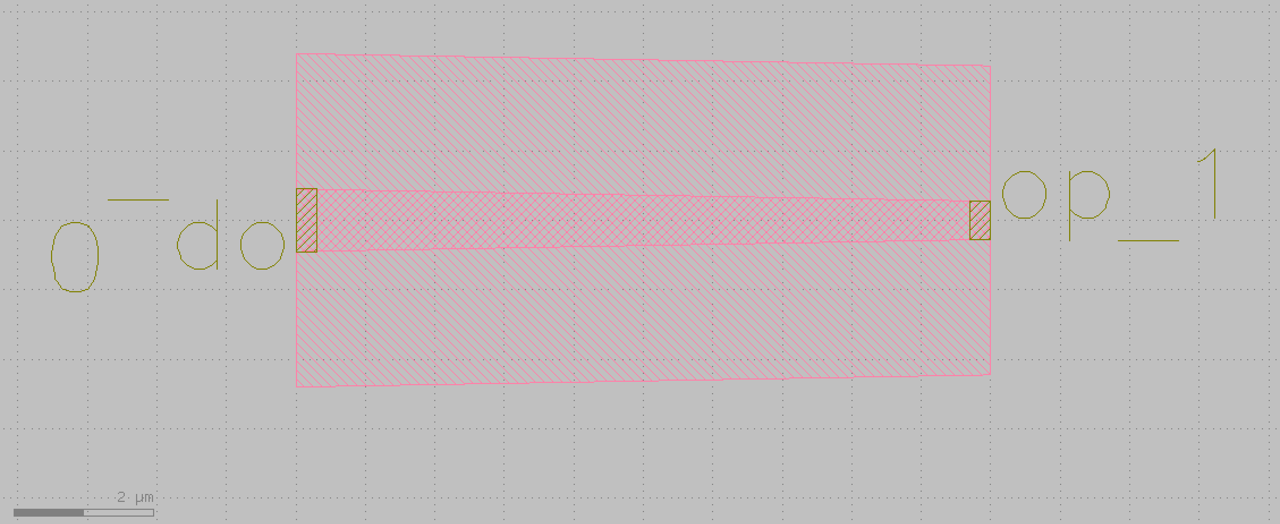

Run and plot:

../_images/comp_taper.png
