Step 1: Build basic building blocks

This case implements the construction of three basic building blocks, including:

Bend

Define bend:

class BendCircular(fp.IWaveguideLike, fp.PCell):
    degrees: float = fp.DegreeParam(default=90, min=-180, max=180, doc="Bend angle in degrees")
    radius: float = fp.PositiveFloatParam(default=10, doc="Bend radius")
    waveguide_type: fp.IWaveguideType = fp.WaveguideTypeParam(doc="Waveguide parameters")
    port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=["op_0", "op_1"])

    def _default_waveguide_type(self):
        return get_technology().WG.FWG.C.WIRE

    def __post_pcell_init__(self):
        assert fp.is_nonzero(self.degrees)

    @cached_property
    def raw_curve(self):
        return fp.g.EllipticalArc(
            radius=self.radius,
            final_degrees=self.degrees,
        )

    def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
        insts, elems, ports = super().build()
        wg = self.waveguide_type(curve=self.raw_curve).with_ports(self.port_names)
        insts += wg
        ports += wg.ports
        return insts, elems, ports

call class, generate the bend waveguide layout file and plot:

library += BendCircular(name="s", radius=15, waveguide_type=TECH.WG.FWG.C.WIRE)
fp.export_gds(library, file=gds_file)
fp.plot(library)

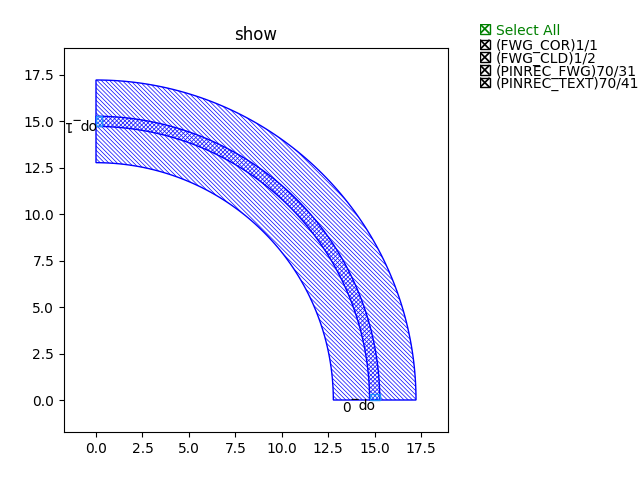

Bend waveguide:

../_images/bend_circular.png

Straight

Define Straight waveguide:

class Straight(fp.IWaveguideLike, fp.PCell):
    length: float = fp.FloatParam(default=10, min=0)
    waveguide_type: fp.IWaveguideType = fp.WaveguideTypeParam()
    anchor: fp.Anchor = fp.AnchorParam(default=fp.Anchor.START)
    port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=("op_0", "op_1"))

    def _default_waveguide_type(self):
        return get_technology().WG.FWG.C.WIRE

    @cached_property
    def raw_curve(self):
        return fp.g.Line(
            length=self.length,
            anchor=self.anchor,
        )

    def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
        insts, elems, ports = super().build()
        wg = self.waveguide_type(curve=self.raw_curve).with_ports(self.port_names)
        insts += wg
        ports += wg.ports
        return insts, elems, ports

call class, generate the staright waveguide layout file and plot:

library += Straight(name="s", length=10, waveguide_type=TECH.WG.FWG.C.WIRE)
fp.export_gds(library, file=gds_file)
fp.plot(library)

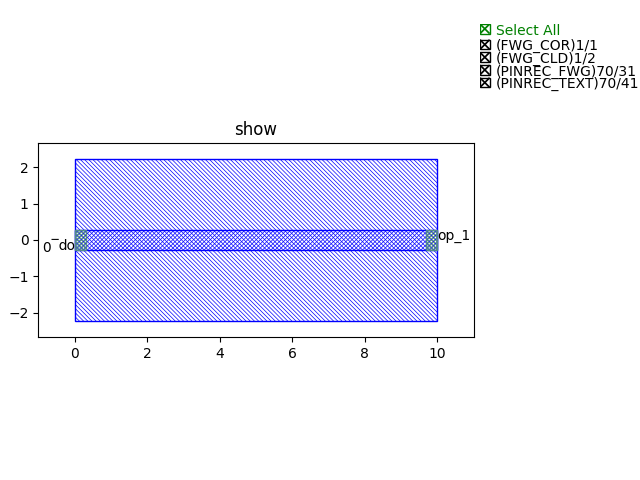

Straight waveguide:

../_images/straight.png

Taper

Define Taper waveguide:

class TaperLinear(fp.IWaveguideLike, fp.PCell):
   length: float = fp.PositiveFloatParam(default=10)
   left_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
   right_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
   anchor: fp.Anchor = fp.AnchorParam(default=fp.Anchor.CENTER)
   port_names: fp.IPortOptions = fp.PortOptionsParam(count=2, default=["op_0", "op_1"])

   def _default_left_type(self):
       return get_technology().WG.FWG.C.WIRE

   def _default_right_type(self):
       return get_technology().WG.FWG.C.EXPANDED

   @cached_property
   def raw_curve(self):
       return fp.g.Line(
           length=self.length,
           anchor=self.anchor,
       )

   def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
       insts, elems, ports = super().build()
       assert self.left_type.is_isomorphic_to(self.right_type), "left_type must be isomorphic to right_type"

       wgt = self.left_type.tapered(taper_function=fp.TaperFunction.LINEAR, final_type=self.right_type)
       wg = wgt(curve=self.raw_curve).with_ports(self.port_names)
       insts += wg
       ports += wg.ports
       return insts, elems, ports

call class, generate the taper waveguide layout file and plot:

library += TaperLinear(length=20, left_type=TECH.WG.SWG.C.WIRE, right_type=TECH.WG.SWG.C.EXPANDED)
fp.export_gds(library, file=gds_file)
fp.plot(library)

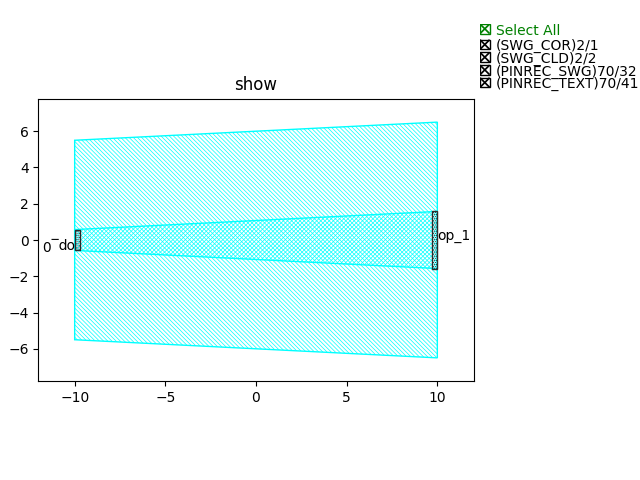

Taper waveguide:

../_images/taper_linear.png
