Cascaded Mach-Zehnder (CMZ) wavelength filter

This example is to demonstrate how PhotoCAD post-simulation can be used in a CMZ wavelength filter [1] and help users to validate their concepts from a simple simulation implementation.

Implement simulation models for auto-link

To use auto-link functions such as fp.Linked, fp.LinkBetween, fp.create_links, we have to implement simulation models in some essential components.

For example, in the CMZ filter circuit, we will use the below scripts and both fp.create_links and fp.LinkBetween to connect DCs and wavelength splitters.

device = fp.create_links(
                    link_type=TECH.WG.FWG.C.WIRE,
                    bend_factory=TECH.WG.FWG.C.WIRE.BEND_CIRCULAR,
                    specs=[
                        fp.LinkBetween(
                            DC1["op_2"],
                            DC2["op_1"],
                            target_length=base_length,
                        ),
                        fp.LinkBetween(DC1["op_3"], DC2["op_0"], target_length=base_length + delta_L),
                    ],
                )

As a result, since component Straight will be used to generate TECH.WG.FWG.C.WIRE, we should add simulation model WGModel to Straight.

For TECH.WG.FWG.C.WIRE.BEND_CIRCULAR, we are using CircularBendFactory to return a circular bend, so it is also necessary to add BendModel in every circular bend cells that are assigned in CircularBendFactory.

Noted that in some cases, transitions simulation models will also have to be implemented in transition cells.

Wavelength Splitters

To demultiplex 8 wavelength channel, 3-level of wavelength splitters will be needed to implement in the CMZ circuit. Splitters are build up from several directional couplers (DCs) and connected together with different length. Below table shows the relations between each level (1st, 2nd, 3rd) wavelength splitters and the length which linked the DCs.

Parameters for the calculation of the delay line lengths of the wavelength splitters in a CMZ wavelength filter. [1]

Splitter	\(\Delta L_{FSR}\)	\(\Delta L_{shift}\)
3st	\(\Delta L_{base}\)	0
2st A	\(\Delta L_{base}\)/2	0
2st B	\(\Delta L_{base}\)/2	0.75 \(\Delta L_{FS}\)
1st A	\(\Delta L_{base}\)/4	0
1st B	\(\Delta L_{base}\)/4	0.25 \(\Delta L_{FS}\)
1st C	\(\Delta L_{base}\)/4	0.125 \(\Delta L_{FS}\)
1st D	\(\Delta L_{base}\)/4	0.375 \(\Delta L_{FS}\)

Note that the correct delay line \(\Delta L\) indicate in each splitter can be obtained from \(\Delta L_{FSR}\) + \(\Delta L_{shift}\).

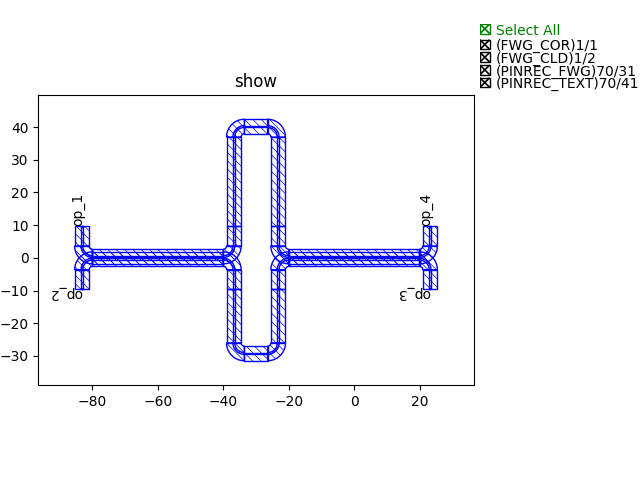

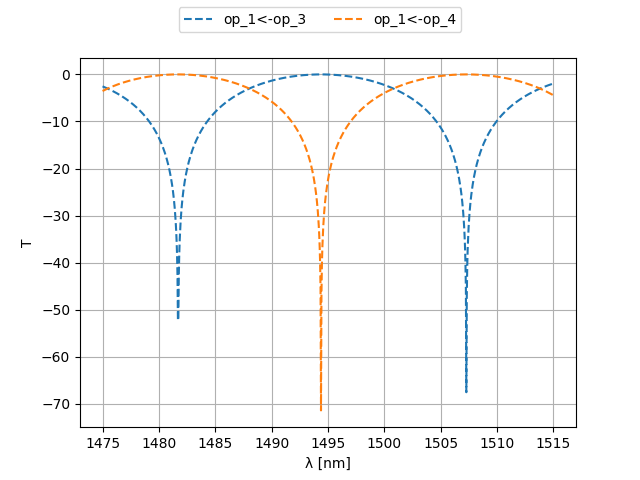

1. 1st level: Below figure [1] show the schematic structure of the 1st level. It contains two 50/50 DCs connected to each other and the length difference \(\Delta L\) is calculated by the table mentioned above.



   class DEMUX_1(fp.PCell):
       L_FSR_coeff: float = fp.PositiveFloatParam(default=1)
       L_shift_coeff: float = fp.NonNegFloatParam(default=0)
       FSR: float = 3.2  # nm
       lambda_center: float = 1490  # nm
       neff: float = 2.4
       ng: float = 4.0

       def build(self):
           insts, elems, ports = super().build()
           TECH = get_technology()
           FSR = self.FSR * 1e-9
           lambda_center = self.lambda_center * 1e-9
           neff = self.neff
           ng = self.ng
           L_FSR_coeff = self.L_FSR_coeff
           L_shift_coeff = self.L_shift_coeff

           base_length = 50  # um
           delta_L_base = (lambda_center**2 / 2 / FSR / ng) * 1e6
           delta_L_FS = (lambda_center / neff) * 1e6
           delta_L_FSR = delta_L_base / L_FSR_coeff
           delta_L_shift = delta_L_FS * L_shift_coeff
           delta_L = delta_L_FSR + delta_L_shift

           DC_050 = pdk.DC_050()

           DC1 = DC_050.translated(-60, 0)
           insts += DC1, "DC1"
           DC2 = DC_050.translated(0, 0)
           insts += DC2, "DC2"

           device = fp.create_links(
               link_type=TECH.WG.FWG.C.WIRE,
               bend_factory=TECH.WG.FWG.C.WIRE.BEND_CIRCULAR,
               specs=[
                   fp.LinkBetween(
                       DC1["op_2"],
                       DC2["op_1"],
                       target_length=base_length,
                   ),
                   fp.LinkBetween(DC1["op_3"], DC2["op_0"], target_length=base_length + delta_L),
               ],
           )
           insts += device

           ports += DC1["op_0"].with_name("op_1")
           ports += DC1["op_1"].with_name("op_2")
           ports += DC2["op_2"].with_name("op_3")
           ports += DC2["op_3"].with_name("op_4")

           # fmt: on
           return insts, elems, ports

       def sim_model(self, left_coupling: float = 0.5, right_coupling: float = 0.5):
           left_dc = self.get("DC1", pdk.DC_050)
           right_dc = self.get("DC2", pdk.DC_050)
           models = {
               left_dc: left_dc.sim_model(coupling=left_coupling),
               right_dc: right_dc.sim_model(coupling=right_coupling),
           }
           return fp.sim.CircuitModel(self, self.netlist(), models)

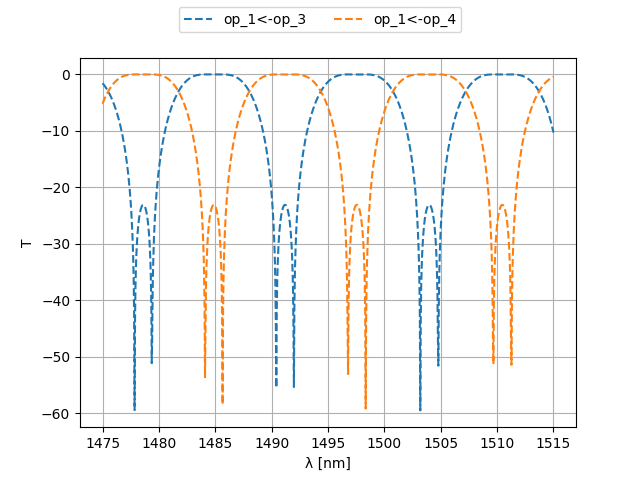

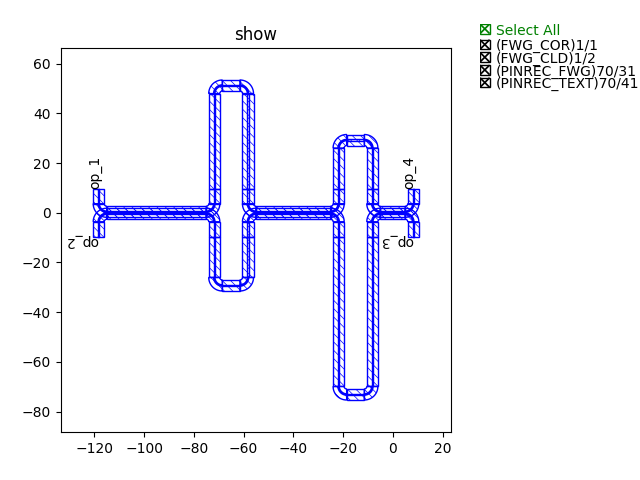

1. 2nd level: Below figure [1] show the schematic structure of the 2nd level. It contains a 50/50 DC, a 71/29 DC, and a 92/8 DC connected to each other and the length difference \(\Delta L\) is calculated by the table mentioned above.



   class DEMUX_2(fp.PCell):
       L_FSR_coeff: float = fp.PositiveFloatParam(default=1)
       L_shift_coeff: float = fp.NonNegFloatParam(default=0)
       FSR: float = 3.2  # nm
       lambda_center: float = 1490  # nm
       neff: float = 2.4
       ng: float = 4.0

       def build(self):
           insts, elems, ports = super().build()
           TECH = get_technology()
           FSR = self.FSR * 1e-9
           lambda_center = self.lambda_center * 1e-9
           neff = self.neff
           ng = self.ng
           L_FSR_coeff = self.L_FSR_coeff
           L_shift_coeff = self.L_shift_coeff

           base_length = 50
           delta_L_base = (lambda_center**2 / 2 / FSR / ng) * 1e6
           delta_L_FS = (lambda_center / neff) * 1e6
           delta_L_FSR = delta_L_base / L_FSR_coeff
           delta_L_shift = delta_L_FS * L_shift_coeff
           delta_L = delta_L_FSR + delta_L_shift

           DC_050 = pdk.DC_050()
           DC_029 = pdk.DC_029()
           DC_008 = pdk.DC_008()

           DC1 = DC_050.translated(-95, 0)
           insts += DC1, "DC1"
           DC2 = DC_029.translated(-40, 0)
           insts += DC2, "DC2"
           DC3 = DC_008.translated(0, 0)
           insts += DC3, "DC3"

           device = fp.create_links(
               link_type=TECH.WG.FWG.C.WIRE,
               bend_factory=TECH.WG.FWG.C.WIRE.BEND_CIRCULAR,
               specs=[
                   fp.LinkBetween(
                       DC1["op_2"],
                       DC2["op_1"],
                       target_length=base_length,
                   ),
                   fp.LinkBetween(DC1["op_3"], DC2["op_0"], target_length=base_length + delta_L),
                   fp.LinkBetween(DC2["op_2"], DC3["op_1"], target_length=base_length + 2 * delta_L),
                   fp.LinkBetween(DC2["op_3"], DC3["op_0"], target_length=base_length),
               ],
           )
           insts += device

           ports += DC1["op_0"].with_name("op_1")
           ports += DC1["op_1"].with_name("op_2")
           ports += DC3["op_2"].with_name("op_3")
           ports += DC3["op_3"].with_name("op_4")

           # fmt: on
           return insts, elems, ports

       def sim_model(self, left_coupling: float = 0.5, mid_coupling: float = 0.29, right_coupling: float = 0.08):
           left_dc = self.get("DC1", pdk.DC_050)
           mid_dc = self.get("DC2", pdk.DC_029)
           right_dc = self.get("DC3", pdk.DC_008)
           models = {
               left_dc: left_dc.sim_model(coupling=left_coupling),
               mid_dc: mid_dc.sim_model(coupling=mid_coupling),
               right_dc: right_dc.sim_model(coupling=right_coupling),
           }
           return fp.sim.CircuitModel(self, self.netlist(), models)

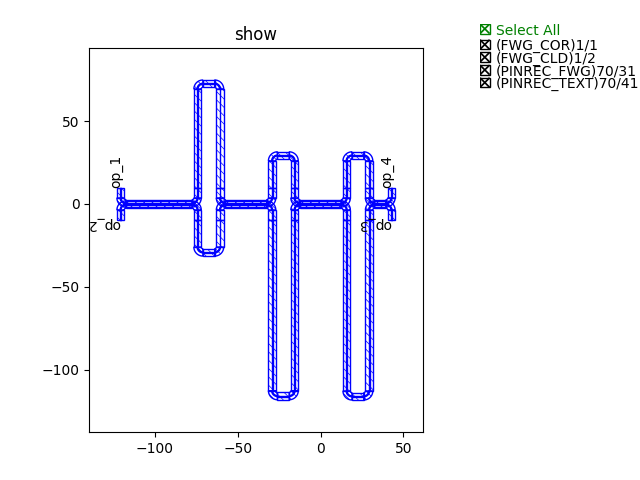

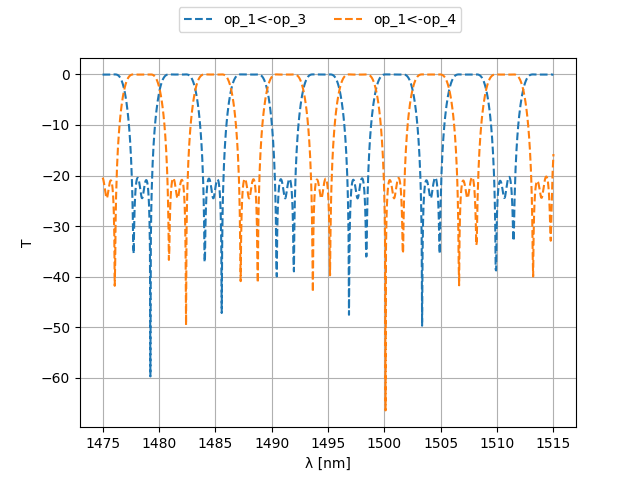

1. 3rd level: Below figure [1] show the schematic structure of the 3rd level. It contains a 50/50 DC, a 80/20 DC, and a 96/4 DC connected to each other and the length difference \(\Delta L\) is calculated by the table mentioned above.



   class DEMUX_3(fp.PCell):
       L_FSR_coeff: float = fp.PositiveFloatParam(default=1)
       L_shift_coeff: float = fp.NonNegFloatParam(default=0)
       FSR: float = 3.2  # nm
       lambda_center: float = 1490  # nm
       # wl_offset: float = 0
       neff: float = 2.4
       ng: float = 4.0

       def build(self):
           insts, elems, ports = super().build()
           TECH = get_technology()
           FSR = self.FSR * 1e-9
           lambda_center = self.lambda_center * 1e-9
           neff = self.neff
           ng = self.ng
           L_FSR_coeff = self.L_FSR_coeff
           L_shift_coeff = self.L_shift_coeff

           base_length = 50
           delta_L_base = (lambda_center**2 / 2 / FSR / ng) * 1e6
           delta_L_FS = (lambda_center / neff) * 1e6
           delta_L_FSR = delta_L_base / L_FSR_coeff
           delta_L_shift = delta_L_FS * L_shift_coeff

           delta_L = delta_L_FSR + delta_L_shift
           Lpi = (lambda_center / (2 * neff)) * 1e6

           DC_050 = pdk.DC_050()
           DC_020 = pdk.DC_020()
           DC_004 = pdk.DC_004()

           DC1 = DC_050.translated(-97.5, 0)
           insts += DC1, "DC1"
           DC2 = DC_020.translated(-45, 0)
           insts += DC2, "DC2"
           DC3 = DC_020.translated(0, 0)
           insts += DC3, "DC3"
           DC4 = DC_004.translated(36, 0)
           insts += DC4, "DC4"

           device = fp.create_links(
               link_type=TECH.WG.FWG.C.WIRE,
               bend_factory=TECH.WG.FWG.C.WIRE.BEND_CIRCULAR,
               specs=[
                   fp.LinkBetween(
                       DC1["op_2"],
                       DC2["op_1"],
                       target_length=base_length,
                   ),
                   fp.LinkBetween(DC1["op_3"], DC2["op_0"], target_length=base_length + delta_L),
                   fp.LinkBetween(DC2["op_2"], DC3["op_1"], target_length=base_length + 2 * delta_L),
                   fp.LinkBetween(DC2["op_3"], DC3["op_0"], target_length=base_length),
                   fp.LinkBetween(DC3["op_2"], DC4["op_1"], target_length=base_length + 2 * delta_L + Lpi),
                   fp.LinkBetween(DC3["op_3"], DC4["op_0"], target_length=base_length),
               ],
           )
           insts += device

           ports += DC1["op_0"].with_name("op_1")
           ports += DC1["op_1"].with_name("op_2")
           ports += DC4["op_2"].with_name("op_3")
           ports += DC4["op_3"].with_name("op_4")

           # fmt: on
           return insts, elems, ports

       def sim_model(self, left_coupling: float = 0.5, mid_coupling: float = 0.20, mid2_coupling: float = 0.20, right_coupling: float = 0.04):
           left_dc = self.get("DC1", pdk.DC_050)
           mid_dc = self.get("DC2", pdk.DC_020)
           mid2_dc = self.get("DC3", pdk.DC_020)
           right_dc = self.get("DC4", pdk.DC_004)
           models = {
               left_dc: left_dc.sim_model(coupling=left_coupling),
               mid_dc: mid_dc.sim_model(coupling=mid_coupling),
               mid2_dc: mid2_dc.sim_model(coupling=mid2_coupling),
               right_dc: right_dc.sim_model(coupling=right_coupling),
           }
           return fp.sim.CircuitModel(self, self.netlist(), models)


CMZ wavelength demultiplexer

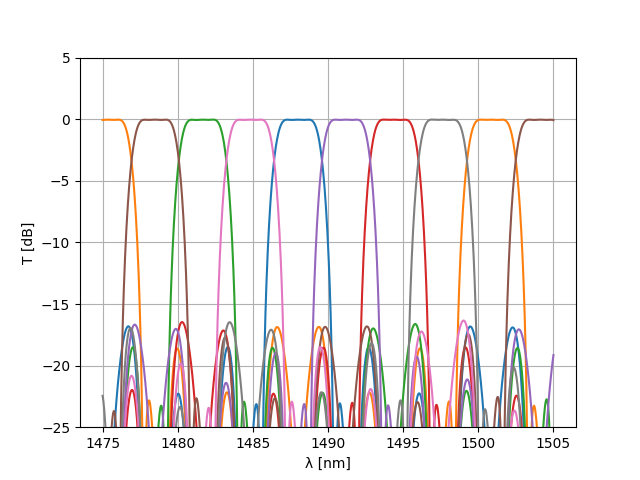

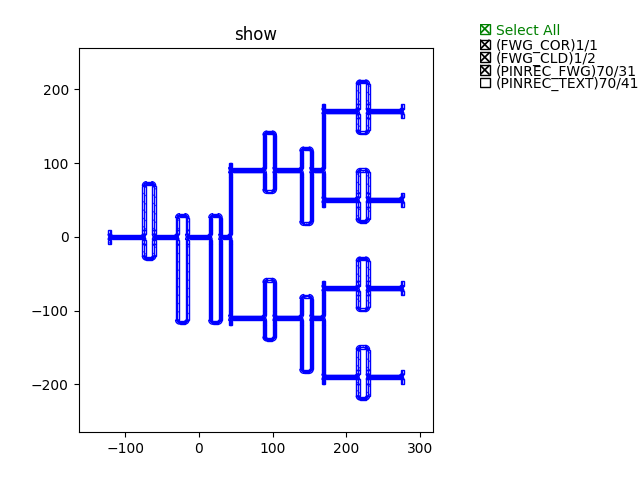

By combining the above three wavelength splitter unit, we are able to build an 8-channel wavelength demultiplexer.

class CMZ(fp.PCell):
    def build(self):
        insts, elems, ports = super().build()
        TECH = get_technology()

        demux_3st = DEMUX_3().translated(0, 0)
        insts += demux_3st, "D3"

        demux_2stA = DEMUX_2(L_FSR_coeff=2, L_shift_coeff=0)
        demux_2stA = demux_2stA["op_1"].repositioned(at=(demux_3st["op_3"].position[0], 100)).owner
        demux_2stB = DEMUX_2(L_FSR_coeff=2, L_shift_coeff=0.75).translated(200, -150)
        demux_2stB = demux_2stB["op_1"].repositioned(at=(demux_3st["op_3"].position[0], -100)).owner
        insts += demux_2stA, "D2A"
        insts += demux_2stB, "D2B"

        demux_1stA = DEMUX_1(L_FSR_coeff=4, L_shift_coeff=0)
        demux_1stA = demux_1stA["op_1"].repositioned(at=(demux_2stA["op_3"].position[0], 180)).owner
        demux_1stB = DEMUX_1(L_FSR_coeff=4, L_shift_coeff=0.25)
        demux_1stB = demux_1stB["op_1"].repositioned(at=(demux_2stA["op_3"].position[0], 60)).owner
        demux_1stC = DEMUX_1(L_FSR_coeff=4, L_shift_coeff=0.125)
        demux_1stC = demux_1stC["op_1"].repositioned(at=(demux_2stA["op_3"].position[0], -60)).owner
        demux_1stD = DEMUX_1(L_FSR_coeff=4, L_shift_coeff=0.375)
        demux_1stD = demux_1stD["op_1"].repositioned(at=(demux_2stA["op_3"].position[0], -180)).owner
        insts += demux_1stA, "D1A"
        insts += demux_1stB, "D1B"
        insts += demux_1stC, "D1C"
        insts += demux_1stD, "D1D"

        device = fp.create_links(
            link_type=TECH.WG.FWG.C.WIRE,
            bend_factory=TECH.WG.FWG.C.WIRE.BEND_CIRCULAR,
            specs=[
                fp.LinkBetween(start=demux_3st["op_4"], end=demux_2stA["op_2"]),
                fp.LinkBetween(start=demux_3st["op_3"], end=demux_2stB["op_1"]),
                fp.LinkBetween(start=demux_2stA["op_4"], end=demux_1stA["op_2"]),
                fp.LinkBetween(start=demux_2stA["op_3"], end=demux_1stB["op_1"]),
                fp.LinkBetween(start=demux_2stB["op_4"], end=demux_1stC["op_2"]),
                fp.LinkBetween(start=demux_2stB["op_3"], end=demux_1stD["op_1"]),
            ],
        )
        insts += device

        ports += demux_3st["op_2"].with_name("In")
        ports += demux_1stA["op_4"].with_name("Out_lambda1")
        ports += demux_1stA["op_3"].with_name("Out_lambda2")
        ports += demux_1stB["op_4"].with_name("Out_lambda3")
        ports += demux_1stB["op_3"].with_name("Out_lambda4")
        ports += demux_1stC["op_4"].with_name("Out_lambda5")
        ports += demux_1stC["op_3"].with_name("Out_lambda6")
        ports += demux_1stD["op_4"].with_name("Out_lambda7")
        ports += demux_1stD["op_3"].with_name("Out_lambda8")

        return insts, elems, ports


    def sim_model(self):

        D3 = self.get("D3", DEMUX_3)
        D2A = self.get("D2A", DEMUX_2)
        D2B = self.get("D2B", DEMUX_2)
        D1A = self.get("D1A", DEMUX_1)
        D1B = self.get("D1B", DEMUX_1)
        D1C = self.get("D1C", DEMUX_1)
        D1D = self.get("D1D", DEMUX_1)
        models = {
            D3: D3.sim_model(left_coupling=0.5, mid_coupling=0.20, mid2_coupling=0.20, right_coupling=0.04),
            D2A: D2A.sim_model(left_coupling=0.5, mid_coupling=0.29, right_coupling=0.08),
            D2B: D2B.sim_model(left_coupling=0.5, mid_coupling=0.29, right_coupling=0.08),
            D1A: D1A.sim_model(left_coupling=0.5, right_coupling=0.5),
            D1B: D1B.sim_model(left_coupling=0.5, right_coupling=0.5),
            D1C: D1C.sim_model(left_coupling=0.5, right_coupling=0.5),
            D1D: D1D.sim_model(left_coupling=0.5, right_coupling=0.5),
        }
        return fp.sim.CircuitModel(self, self.netlist(), models)

[1] (1,2,3,4)

Horst, F., Green, W. M., Assefa, S., Shank, S. M., Vlasov, Y. A., & Offrein, B. J. (2013). Cascaded Mach-Zehnder wavelength filters in silicon photonics for low loss and flat pass-band WDM (de-)multiplexing. Optics express, 21(10), 11652–11658.
