Splitter

This section will introduce customizing the components in gpdk from the beginning, using Splitter as an example. The full script can be found in gpdk > components > splitter > y_splitter.py.

Full Script

from typing import Tuple
from fnpcell import all as fp
from gpdk.components.straight.straight import Straight
from gpdk.components.bend.bend_euler import BendEuler
from gpdk.components.taper.taper_linear import TaperLinear
from gpdk.technology import get_technology




class Splitter(fp.PCell):

    bend_radius: float = fp.PositiveFloatParam(default=15, doc="Bend radius")
    out_degrees: float = fp.DegreeParam(default=90, doc="Angle at which the waveguide exit the splitter")
    center_waveguide_length: float = fp.PositiveFloatParam(default=2.0, doc="Length of the center waveguide")
    taper_length: float = fp.PositiveFloatParam(default=0.1, doc="Length of the tapered section")
    waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
    port_names: fp.IPortOptions = fp.PortOptionsParam(count=3, default=("op_0", "op_1", "op_2"))

    def _default_waveguide_type(self):
        return get_technology().WG.FWG.C.WIRE

    def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
        insts, elems, ports = super().build()

        # fmt: off

        bend_radius = self.bend_radius
        out_degrees = self.out_degrees
        center_waveguide_length = self.center_waveguide_length
        taper_length = self.taper_length
        waveguide_type = self.waveguide_type
        port_names = self.port_names

        core_width = waveguide_type.core_width


        center = Straight(length=center_waveguide_length, waveguide_type=waveguide_type, anchor=fp.Anchor.END, transform=fp.translate(-taper_length, 0))
        insts += center
        ports += center["op_0"].with_name(port_names[0])

        taper_type = waveguide_type.updated(core_layout_width=core_width * 2, cladding_layout_width=waveguide_type.cladding_width + core_width)
        taper = TaperLinear(length=taper_length, left_type=waveguide_type, right_type=taper_type, anchor=fp.Anchor.END)
        insts += taper

        bend_top = BendEuler(radius_eff=bend_radius, degrees=out_degrees, waveguide_type=waveguide_type).translated(0, core_width/2)
        insts += bend_top

        bend_bottom = bend_top.v_mirrored()
        insts += bend_bottom

        ports += bend_bottom["op_1"].with_name(port_names[1])
        ports += bend_top["op_1"].with_name(port_names[2])  # for right port index(0 1 2) in netlist

        # fmt: on
        return insts, elems, ports


if __name__ == "__main__":
    from gpdk.components import all as components
    from gpdk.util.path import local_output_file

    gds_file = local_output_file(__file__).with_suffix(".gds")
    library = fp.Library()

    TECH = get_technology()
    # =======================================================================
    # fmt: off

    library += YSplitter()

    # fmt: on
    # =============================================================
    fp.export_gds(library, file=gds_file)
    fp.export_pls(library, file=gds_file.with_suffix(".pls"), components=components)
    # fp.plot(library)

Section Script Description

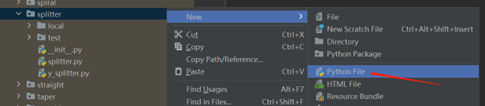

Create a new python script:

For example, create a new splitter.py script under gpdk > components > splitter.
Importing necessary function packages

To customize the components in gpdk, fnpcell needs to be imported because modules such as data format, waveguide type( CoreCladdingWaveguideType ), graphics generation need to be used. Moreover, graphics in the component layout need to be generated on different process layers, so process information(technology) in gpdk needs to be imported. The python libraries typing for data processing also need to be imported for this:
```
from typing import Tuple
from fnpcell import all as fp
from gpdk.components.straight.straight import Straight
from gpdk.components.bend.bend_euler import BendEuler
from gpdk.components.taper.taper_linear import TaperLinear
from gpdk.technology import get_technology
```
Define a new PCell, and a custom Splitter class:

Define the new parameterized cell via fp.PCell in fnpcell, which is a new component in gpdk.
```
class Splitter(fp.PCell)
```
Define the properties and methods in the Splitter class
1. Define user-definable parameters:
```
bend_radius: float = fp.PositiveFloatParam(default=15, doc="Bend radius")
out_degrees: float = fp.DegreeParam(default=90, doc="Angle at which the waveguide exit the splitter")
center_waveguide_length: float = fp.PositiveFloatParam(default=2.0, doc="Length of the center waveguide")
taper_length: float = fp.PositiveFloatParam(default=0.1, doc="Length of the tapered section")
waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam(type=CoreCladdingWaveguideType)
port_names: fp.IPortOptions = fp.PortOptionsParam(count=3, default=("op_0", "op_1", "op_2"))
```
  - In Splitter, two mirrored bends are used, where the radius of the bend, the angle of the output waveguide, the waveguide type, and the device port are all key variables.
  - bend_radius： float =fp.PositiveFloatParam() defines the radius of bend in Splitter, the data type is positive floating point, set the default value to 15, doc="" is used to mark the comment description text.
  - out_degrees：float =fp.DegreeParam() is used to indicate the output angle of the Splitter, with a default value of 90 degrees.
  - taper_length: float = fp.PositiveFloatParam()``is used to define the length of the tapered structure in ``Splitter, default is 0.1.
  - waveguide_type: CoreCladdingWaveguideType = fp.WaveguideTypeParam() is used to define the type of the waveguide.
  - port_names: fp.IPortOptions = fp.PortOptionsParam() is used to define the number of ports of the component, since it is a Y-shaped branch, so there will be one port on the left and two ports on the right, the total number is count=3 . Secondly, the ports are named, and the default is default=("op_0", "op_1", "op_2"), the user can set it by himself.
2. Define a self method to get the default waveguide type:
```
def _default_waveguide_type(self):
    return get_technology().WG.FWG.C.WIRE
```
  If the user does not specify the waveguide type to return a waveguide of type FWG.C.WIRE, this can be modified here to the default waveguide type specified by the user, e.g. get_technology().WG.MWG.C.WIRE.
3. Define the build method to build Splitter and draw the layout
  - Instances, elements and ports are usually used in device cells, i.e. calls to other cell instances, graphics in this cell and device ports.

    The three elements in the device are implemented in the PCell definition by calling the build function module in the parent class PCell
```
def build(self):
    insts, elems, ports = super().build()
```
  - Define the variable parameters we set
```
bend_radius = self.bend_radius
out_degrees = self.out_degrees
center_waveguide_length = self.center_waveguide_length
taper_length = self.taper_length
waveguide_type = self.waveguide_type
port_names = self.port_names
```
  - Define the width of the waveguide core
```
core_width = waveguide_type.core_width
```
  - Define the type of curve of the intermediate waveguide, as well as its length, the type of waveguide, the starting point of the waveguide and the position of the waveguide by means of its parameters
```
center = Straight(length=center_waveguide_length, waveguide_type=waveguide_type, anchor=fp.Anchor.END, transform=fp.translate(-taper_length, 0))
```
  - Initiate center and define the name of the ports
```
insts += center
ports += center["op_0"].with_name(port_names[0])
```
  - Define the type of waveguide in the tapered part of the device and to set the width of the cores therein in relation to the width of the cladding.
```
taper_type = waveguide_type.updated(core_layout_width=core_width * 2, cladding_layout_width=waveguide_type.cladding_width + core_width)
```
  - Define and initiate the shape of the taper, where the parameters are used to control its length, waveguide type, starting position, etc.
```
taper = TaperLinear(length=taper_length, left_type=waveguide_type, right_type=taper_type, anchor=fp.Anchor.END)
insts += taper
```
  - Define and initiate the top bend an Euler-shaped bend, where the control parameters can be found in the BendEuler class.
```
bend_top = BendEuler (radius_eff=bend_radius, degrees=out_degrees, waveguide_type=waveguide_type).translated(0, core_width/2)
insts += bend_top
```
  - Define and initiate the right side lower output bend is mirrored vertically with the upper output bend in Splitter.
```
bend_bottom = bend_top.v_mirrored()
insts += bend_bottom
```
  - Define the names of the two ports (bend_top/ bend_bottom ) separately and initiate them.
```
ports += bend_bottom["op_1"].with_name(port_names[1])
ports += bend_top["op_1"].with_name(port_names[2])
```
  - Return the instances, elements, and ports in the component cell.
```
return insts, elems, ports
```
4. Use the Splitter class to create component cells and output the layout
  - Import the path control package for python. Since the above code uses the components defined in gpdk, it is straightforward to import all the components for ease of use.
```
from pathlib import Path
import gpdk.components.all
```
  - Refer to the path where the top generated gds file is saved. Then obtain all device process information.
```
gds_file = Path(__file__).parent / "local" / Path(__file__).with_suffix(".gds").name
library = fp.Library()

TECH = get_technology()
```
  - Create a component defined with default parameters
```
library += Splitter ()
```
  - Use the variable parameters defined in our Splitter class to generate the specified component
```
library += Splitter(name='S', bend_radius=15, out_degrees=90, center_waveguide_length=4, taper_length=0.5,waveguide_type=TECH.WG.MWG.C.WIRE, port_names=(['op_a', 'op_b', 'op_c']))
```
  - Export GDS files
```
fp.export_gds(library, file=gds_file)
```

Run the script and view the layout

Run splitter.py and use layout tool e.g. KLayout to view the generated GDS file, which should be saved under gpdk > components > splitter > local.

In the table you can see the two generated instances, Splitter and Splitter_S, where Splitter is set as a prefix the definition of the splitter class name. S is the instance name defined at the time of instantiation, when specified by default plus the former Splitter_.

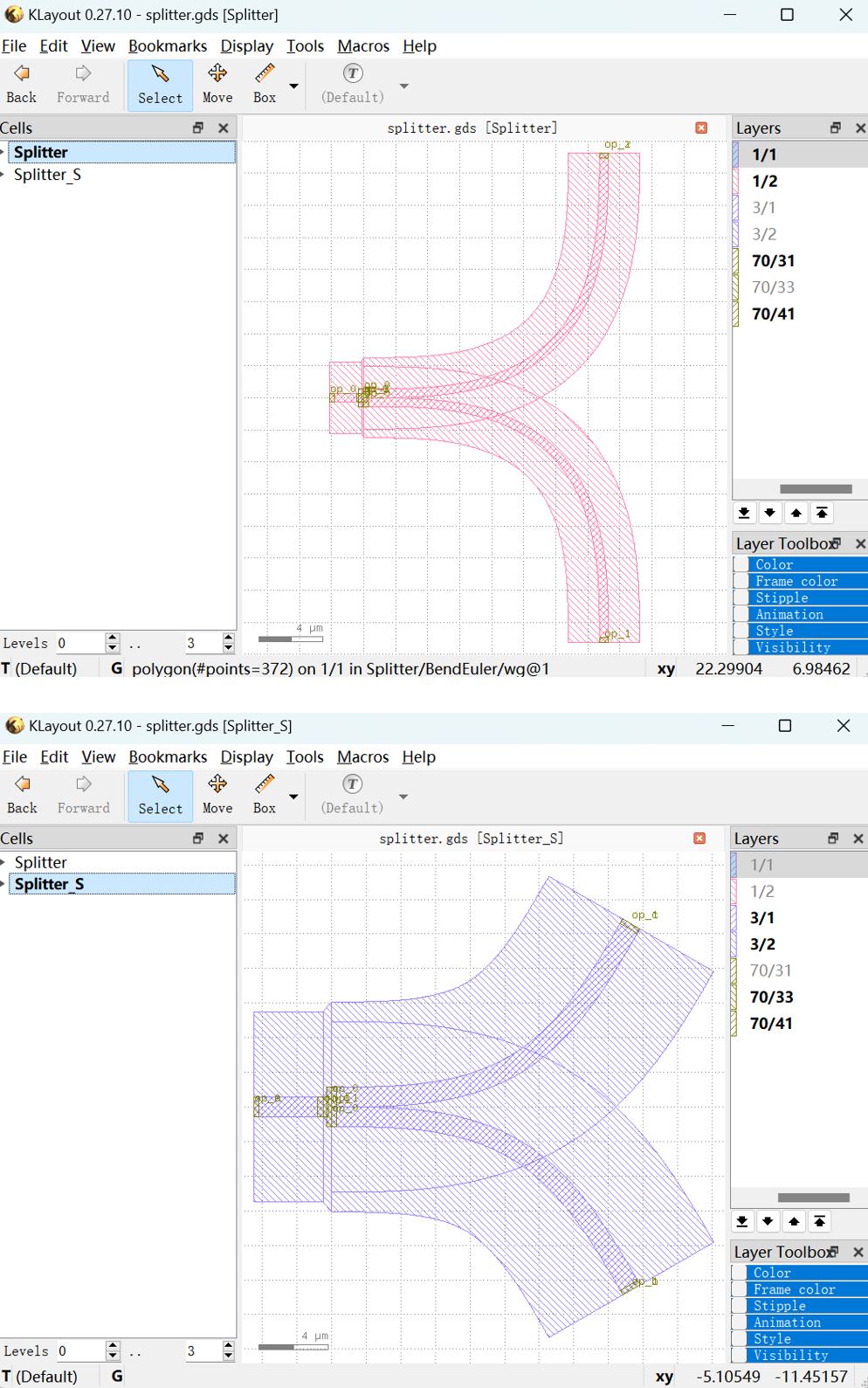

View the two layout cells separately.

Splitter: bend radius default= 15, output angle default= 90 , central waveguide length default= 2 , taper length default= 0.1 , waveguide type default= FWG.C.WIRE , default port name op_1 , op_2, op_3.
Splitter_S: bend radius default= 20, output angle default= 60 , central waveguide length default= 4 , taper length default= 0.5 , waveguide type default= MWG.C.WIRE , default port name op_a , op_b, op_c.
