Commonly used interface

The main types of interface functions commonly used by users are as follows:

Graphics
Routing
Transform
Information

Graphics

The graphics api mainly contains the api for common graphics drawing and the api for Boolean operations.

The api for common graphics mainly contains:

fp.el.Rect
fp.el.Circle
fp.el.Polygon
fp.el.Ring
fp.el.RegularPolygon
fp.el.Line
fp.el.Label

fp.el.Rect
- parameters: width/height/center/origin/bottom_left/transform/corner_radius/layer
- examples:
  fp.el.Rect(width=10, height=10, center=(0, 0), layer=TECH.LAYER.FWG_COR)

  fp.el.Rect(width=8, height=8, center=(10, 0), layer=TECH.LAYER.M1_DRW, corner_radius=2)
fp.el.Circle
- parameters: radius/origin/initial_degrees/final_degrees/initial_radians/final_radians/transform/layer
- examples:
  fp.el.Circle(radius=10, origin=(0, 0), initial_degrees=30, final_degrees=90, layer=TECH.LAYER.M1_DRW)

  fp.el.Circle(radius=8, origin=(15, 0), initial_degrees=0, final_degrees=120, layer=TECH.LAYER.N_DRW)
fp.el.Polygon
- parameters: raw_shape/origin/transform/layer
- examples:
  fp.el.Polygon(raw_shape=[(0, 0), (6, 2), (7, 8), (2, 12)], origin=(0, 0), layer=TECH.LAYER.M2_DRW)

  fp.el.Polygon(raw_shape=[(3, 5), (6, 9), (11, 15), (4, 12)], origin=(10, 0), layer=TECH.LAYER.GE_DRW)
fp.el.ring
- parameters: outer_radius/inner_radius/origin/initial_degrees/final_degrees/initial_radians/final_radians/transform/layer
- examples:
  fp.el.Ring(outer_radius=5, inner_radius=2, initial_degrees=30, final_degrees=120, layer=TECH.LAYER.TIN_DRW)

  fp.el.Ring(outer_radius=8, inner_radius=3, initial_degrees=0, final_degrees=90, origin=(10, 0), layer=TECH.LAYER.PINREC_TEXT)
fp.el.RegularPolygon
- parameters: sides/side_length/origin/transform/layer
- examples:
  fp.el.RegularPolygon(sides=3, side_length=5, layer=TECH.LAYER.IOPORT_EREC)

  fp.el.RegularPolygon(sides=5, side_length=7, origin=(10, 0), layer=TECH.LAYER.PASS_MT)
fp.el.Line
- parameters: length/stroke_width/final_stroke_width/stroke_offset/final_stroke_offset/taper_function/end_hints/anchor/origin/transform/layer
- examples:
  fp.el.Line(length=10, stroke_width=5, final_stroke_width=8, layer=TECH.LAYER.NP_DRW)

  fp.el.Line(length=10, stroke_width=3, final_stroke_width=5, stroke_offset=2, final_stroke_offset=5, anchor=fp.Anchor.CENTER, origin=(0, 5), layer=TECH.LAYER.PP_DRW)
fp.el.Label
- parameters: content/highlight/baseline/at/font/font_size/origin/anchor/transform/layer
- examples:
  from gpdk.technology.font.font_std_vented import FONT as font

  label = fp.el.Label(content="LDA", highlight=True, at=(0, 0), font=font, font_size=10, layer=TECH.LAYER.LABEL_DRW)

  fp.el.Label(content="PHOTOCAD", highlight=False, at=(0, 12), font=font, font_size=15, layer=TECH.LAYER.TEXT_NOTE)

To change the layer of an element from one component to another, users are allow to use fp.el.PolygonSet.with_layer() to easily adjust the layer of the element from one to another:

fp.el.PolygonSet.with_layer(self="polygon you wish to tranform", layer="the layer you wish the transformed polygon to be")

The Boolean api mainly contains:

OR
AND
NOT
XOR

OR
- examples:
  rect = fp.el.Rect(width=10, height=5, center=(0, 0), layer=TECH.LAYER.M1_DRW)

  circ = fp.el.Circle(radius=8, initial_degrees=0, final_degrees=180, layer=TECH.LAYER.M1_DRW)

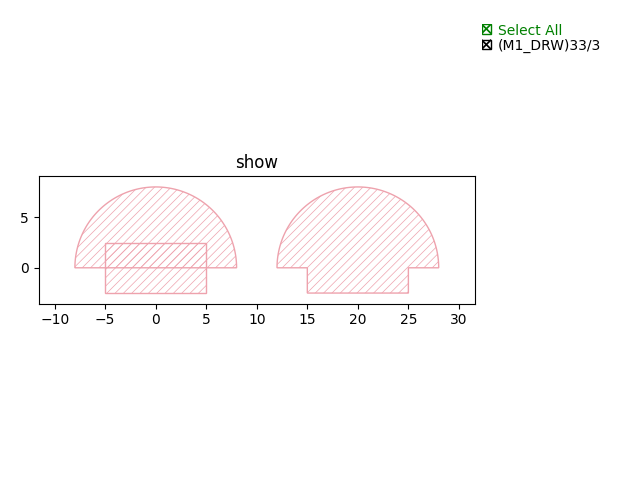

  bool = rect | circ
AND
- examples:
  rect = fp.el.Rect(width=10, height=5, center=(0, 0), layer=TECH.LAYER.M1_DRW)

  circ = fp.el.Circle(radius=8, initial_degrees=0, final_degrees=180, layer=TECH.LAYER.M1_DRW)

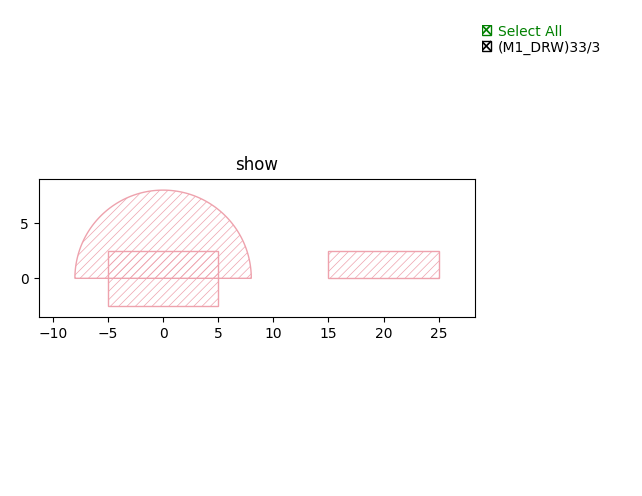

  bool = rect & circ
NOT
- examples:
  rect = fp.el.Rect(width=10, height=5, center=(0, 0), layer=TECH.LAYER.M1_DRW)

  circ = fp.el.Circle(radius=8, initial_degrees=0, final_degrees=180, layer=TECH.LAYER.M1_DRW)

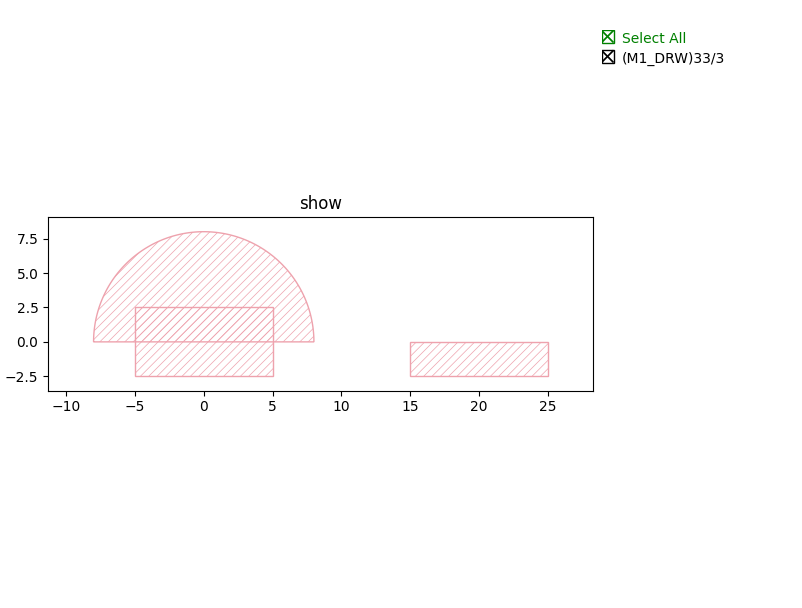

  bool = rect - circ
XOR
- examples:
  rect = fp.el.Rect(width=10, height=5, center=(0, 0), layer=TECH.LAYER.M1_DRW)

  circ = fp.el.Circle(radius=8, initial_degrees=0, final_degrees=180, layer=TECH.LAYER.M1_DRW)

  bool = rect ^ circ

Routing

The routing api mainly contains:

fp.Linked
fp.LinkBetween
fp.create_links
fp.Connect

For specific usage, please refer to Waveguide Routing.

Transform

The transform api mainly contains:

translated
rotated
h_mirrored
v_mirrored
c_mirrored
scaled

translated
- parameters: tx/ty
- examples:
  a = fp.el.Rect(width=5, height=5, center=(0, 0), layer=TECH.LAYER.M1_DRW, corner_radius=1)

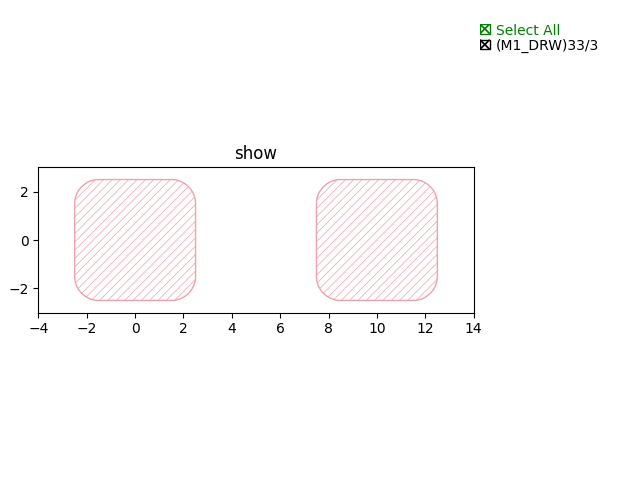

  b = a.translated(10, 0)
rotated
- parameters: degrees/radians/origin/inplace
- examples:
  a = fp.el.RegularPolygon(sides=5, side_length=5, layer=TECH.LAYER.M2_DRW)

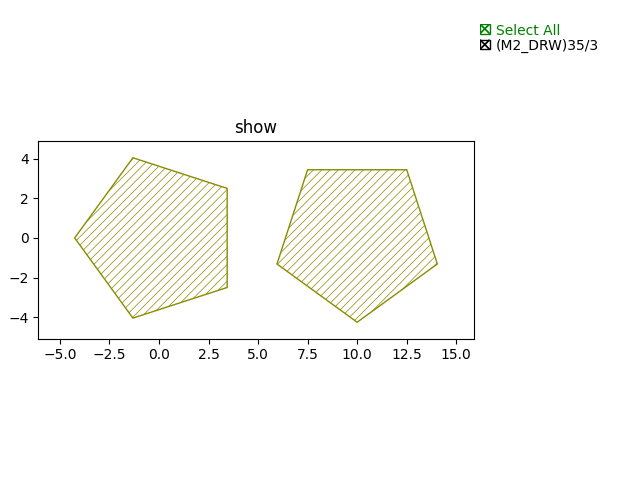

  b = a.rotated(degrees=90).translated(10, 0)
h_mirrored
- parameters: x/inplace
- examples:
  a = fp.el.Ring(outer_radius=5, inner_radius=2, initial_degrees=30, final_degrees=120, layer=TECH.LAYER.TIN_DRW)

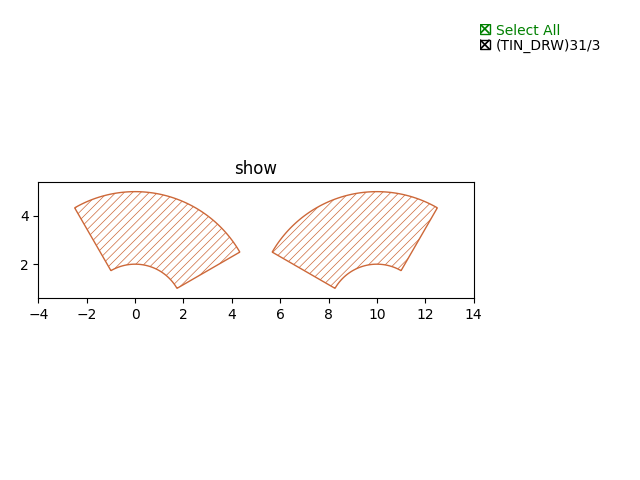

  b = a.h_mirrored(x=5)
v_mirrored
- parameters: y/inplace
- examples:
  a = fp.el.EllipticalRing(outer_radius=3, inner_radius=1, initial_degrees=45, final_degrees=180, layer=TECH.LAYER.MWG_COR)

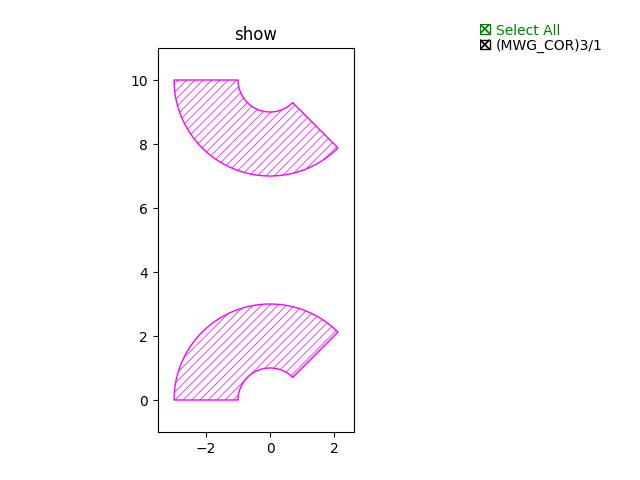

  b = a.v_mirrored(y=5)

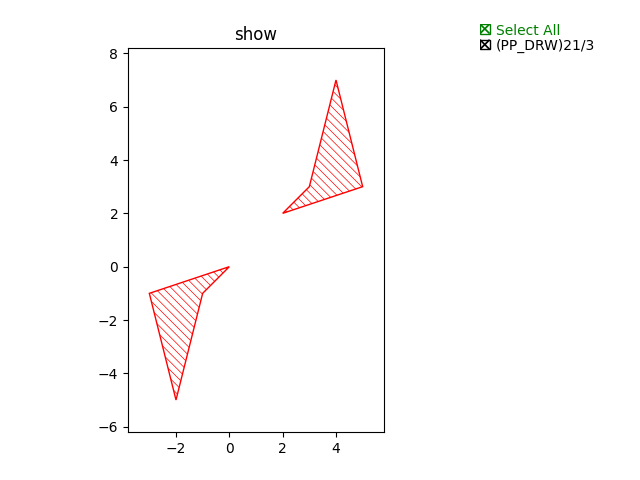

c_mirrored
- parameters: origin/center/inplace
- examples:
  a = fp.el.Polygon(raw_shape=[(0, 0), (-3, -1),(-2, -5), (-1, -1)], layer=TECH.LAYER.PP_DRW)

  b = a.c_mirrored(origin=(1, 1))
scaled
- parameters: sx/sy/origin/inplace
- examples:
  a = fp.el.Rect(width=2, height=2, center=(0, 0), layer=TECH.LAYER.TH_ISO_DRW)

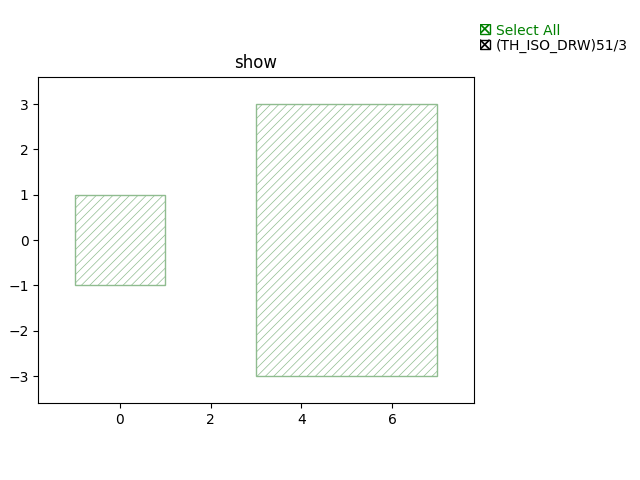

  b = a.scaled(2, 3).translated(5, 0)

Information

The information api mainly contains:

position:
 # return port's position (x, y)
orientation:
 # return port's orientation (radian)
get_left_ports:
 # return all left-sided ports in the PCell
get_right_ports:
 # return all right-sided ports in the PCell
get_bounding_box(target, exclude_layers):
 # return the bounding box's coordinate of the PCell
 # target: any drawable instance, such as IPolygon, ICell, ICellRef, ILibrary
 # exclude_layers: layers you don't want the function to be included.
