fanout

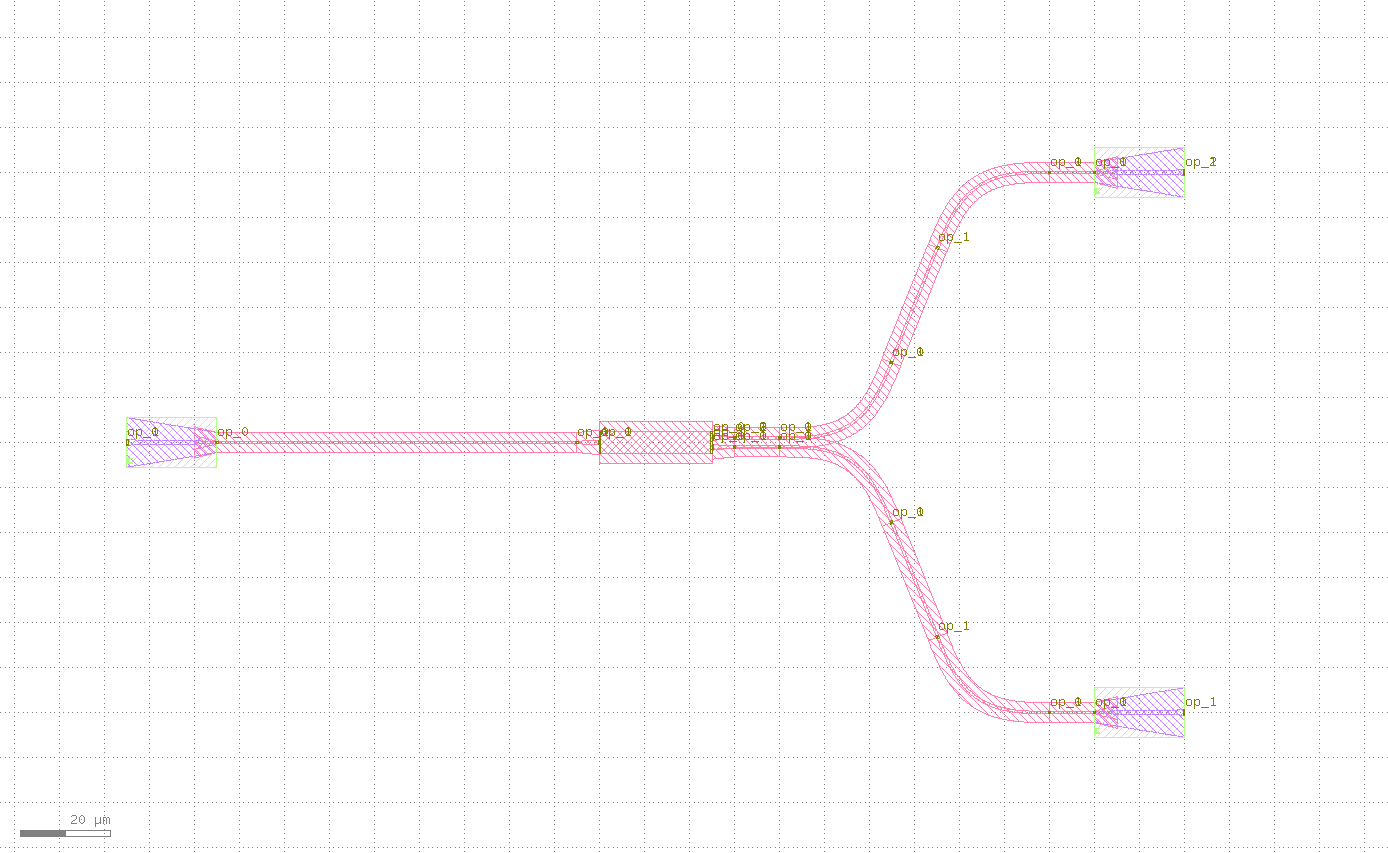

fanout可以实现器件端口到光栅耦合器的自动布局布线。
fanout类定义如下:
@dataclass(eq=False)
class HFanout(PCell):
"""
Attributes:
device: device whose ports need fanout
left_spacing: spacing between left ports
right_spacing: spacing between right ports
bend_degrees: defaults to 30 degrees
bend_factories: a callable which receives an `IWaveguideType` and returns an `IBendWaveguideFactory`
device_left_ports: Optional, device left ports from top to bottom
device_right_ports: Optional, device right ports from bottom to top
left_distance: Optional
right_distance: Optional
left_ports: Optional, port options for left ports
right_ports: Optional, port options for right ports
left_waveguide_type: Optional, type of left waveguide
right_waveguide_type: Optional, type of right waveguide
connect_length: defaults to 10, distance between generated port and sbend
Examples:
```python
from gpdk.technology.bend_factory import EulerBendFactory
def bend_factories(waveguide_type: fp.IWaveguideType):
if waveguide_type == TECH.WG.FWG.C.WIRE:
return EulerBendFactory(radius_min=15, l_max=15, waveguide_type=waveguide_type)
return waveguide_type.bend_factory
device = HFanout(device=Mmi(waveguide_type=TECH.WG.FWG.C.WIRE), left_spacing=120, right_spacing=120, left_distance=100, right_distance=100,
bend_factories=bend_factories, left_waveguide_type=TECH.WG.SWG.C.WIRE, right_waveguide_type=TECH.WG.SWG.C.WIRE)
fp.plot(device)
```
"""
device: fp.IDevice = fp.DeviceParam()
left_spacing: float = fp.PositiveFloatParam()
right_spacing: float = fp.PositiveFloatParam()
bend_degrees: float = fp.DegreeParam(default=30, min=0, max=90, invalid=[0])
bend_factories: Optional[Callable[[fp.IWaveguideType], fp.IBendWaveguideFactory]] = fp.Param(required=False)
device_left_ports: Sequence[str] = fp.NameListParam(required=False, doc="device left ports from top to bottom")
device_right_ports: Sequence[str] = fp.NameListParam(required=False, doc="device right ports from bottom to top")
left_distance: Optional[float] = fp.FloatParam(required=False, min=0)
right_distance: Optional[float] = fp.FloatParam(required=False, min=0)
left_ports: Optional[fp.IPortOptions] = fp.PortOptionsParam(required=False)
right_ports: Optional[fp.IPortOptions] = fp.PortOptionsParam(required=False)
left_waveguide_type: Optional[fp.IWaveguideType] = fp.WaveguideTypeParam(required=False)
right_waveguide_type: Optional[fp.IWaveguideType] = fp.WaveguideTypeParam(required=False)
connect_length: float = fp.PositiveFloatParam(default=10)
def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
insts, elems, ports = super().build()
TECH = get_technology()
device = self.device
left_spacing = self.left_spacing
right_spacing = self.right_spacing
bend_degrees = self.bend_degrees
bend_factories = self.bend_factories
device_left_ports = self.device_left_ports
device_right_ports = self.device_right_ports
left_distance = self.left_distance
right_distance = self.right_distance
left_ports = self.left_ports
right_ports = self.right_ports
left_waveguide_type = self.left_waveguide_type
right_waveguide_type = self.right_waveguide_type
connect_length = self.connect_length
if device_left_ports is None:
device_left_ports = [port.name for port in util.ports.get_left_ports(device)]
device_left_ports = list(device_left_ports)
if device_right_ports is None:
device_right_ports = [port.name for port in util.ports.get_right_ports(device, reverse=True)]
device_right_ports = list(device_right_ports)
left_ports = left_ports or device_left_ports
right_ports = right_ports or device_right_ports
result_left_ports: List[fp.IOwnedTerminal] = []
left_joints: List[Tuple[fp.IOwnedTerminal, fp.IOwnedTerminal]] = []
left_count = len(device_left_ports)
if len(left_ports) != left_count:
raise AssertionError("len(left_ports) must be equal to len(device_left_ports)")
for i in range(left_count // 2):
device_ltop_port = cast(fp.IOwnedPort, device[device_left_ports[i]])
ltop_port = device_ltop_port
device_lbottom_port = cast(fp.IOwnedPort, device[device_left_ports[left_count - i - 1]])
lbottom_port = device_lbottom_port
ltop_distance = left_distance
lbottom_distance = left_distance
if ltop_distance:
ltop_distance -= connect_length * 2
if lbottom_distance:
lbottom_distance -= connect_length * 2
ltop_transition = None
lbottom_transition = None
if left_waveguide_type:
if ltop_port.waveguide_type != left_waveguide_type:
if not ltop_distance:
raise AssertionError("left_distance is required for auto transition")
ltop_transition, (port_in, port_out) = TECH.AUTO_TRANSITION.DEFAULT[ltop_port.waveguide_type >> left_waveguide_type]
ltop_distance -= fp.distance_between(ltop_transition[port_in].position, ltop_transition[port_out].position)
if lbottom_port.waveguide_type != left_waveguide_type:
if not lbottom_distance:
raise AssertionError("left_distance is required for auto transition")
lbottom_transition, (port_in, port_out) = TECH.AUTO_TRANSITION.DEFAULT[lbottom_port.waveguide_type >> left_waveguide_type]
lbottom_distance -= fp.distance_between(lbottom_transition[port_in].position, lbottom_transition[port_out].position)
lconnect_top1 = Straight(
name="lctop1",
length=connect_length,
waveguide_type=ltop_port.waveguide_type,
)
lconnect_top2 = Straight(
name="lctop2",
length=connect_length,
waveguide_type=ltop_port.waveguide_type,
)
lconnect_bottom1 = Straight(
name="lcbottom1",
length=connect_length,
waveguide_type=lbottom_port.waveguide_type,
)
lconnect_bottom2 = Straight(
name="lcbottom2",
length=connect_length,
waveguide_type=lbottom_port.waveguide_type,
)
ltop_sbend, lbottom_sbend = SBendPair(
top_distance=ltop_distance,
bottom_distance=lbottom_distance,
left_spacing=left_spacing * (left_count - i * 2 - 1),
right_spacing=fp.distance_between(ltop_port.position, lbottom_port.position),
bend_degrees=bend_degrees,
top_type=ltop_port.waveguide_type,
bottom_type=lbottom_port.waveguide_type,
top_bend_factory=bend_factories and bend_factories(ltop_port.waveguide_type),
bottom_bend_factory=bend_factories and bend_factories(lbottom_port.waveguide_type),
)
left_joints.append(ltop_port <= lconnect_top1["op_1"])
left_joints.append(lconnect_top1["op_0"] <= ltop_sbend["op_1"])
left_joints.append(ltop_sbend["op_0"] <= lconnect_top2["op_1"])
ltop_port = lconnect_top2["op_0"]
left_joints.append(lbottom_port <= lconnect_bottom1["op_1"])
left_joints.append(lconnect_bottom1["op_0"] <= lbottom_sbend["op_1"])
left_joints.append(lbottom_sbend["op_0"] <= lconnect_bottom2["op_1"])
lbottom_port = lconnect_bottom2["op_0"]
if ltop_transition:
left_joints.append(ltop_port <= ltop_transition["op_0"])
ltop_port = ltop_transition["op_1"]
if lbottom_transition:
left_joints.append(lbottom_port <= lbottom_transition["op_0"])
lbottom_port = lbottom_transition["op_1"]
result_left_ports.insert(0, ltop_port)
result_left_ports.append(lbottom_port)
if not left_distance:
left_distance = abs(ltop_port.position[0] - device_ltop_port.position[0])
if left_distance and left_count % 2:
lindex = left_count // 2
lmiddle_port = cast(fp.IOwnedPort, device[device_left_ports[lindex]])
lmiddle_distance = left_distance
lmiddle_transition = None
if left_waveguide_type and lmiddle_port.waveguide_type != left_waveguide_type:
if not lmiddle_distance:
raise AssertionError("middle_distance is required for auto transition")
lmiddle_transition, (port_in, port_out) = TECH.AUTO_TRANSITION.DEFAULT[lmiddle_port.waveguide_type >> left_waveguide_type]
lmiddle_distance -= fp.distance_between(lmiddle_transition[port_in].position, lmiddle_transition[port_out].position)
lstraight = Straight(
name="lmiddle",
length=lmiddle_distance,
waveguide_type=lmiddle_port.waveguide_type,
)
left_joints.append(lmiddle_port <= lstraight["op_1"])
lmiddle_port = lstraight["op_0"]
if lmiddle_transition:
left_joints.append(lmiddle_port <= lmiddle_transition["op_0"])
lmiddle_port = lmiddle_transition["op_1"]
result_left_ports.insert(lindex, lmiddle_port)
############################
result_right_ports: List[fp.IOwnedTerminal] = []
right_joints: List[Tuple[fp.IOwnedTerminal, fp.IOwnedTerminal]] = []
right_count = len(device_right_ports)
if len(right_ports) != right_count:
raise AssertionError("len(right_ports) must be equal to len(device_right_ports)")
for i in range(right_count // 2):
device_rbottom_port = cast(fp.IOwnedPort, device[device_right_ports[i]])
rbottom_port = device_rbottom_port
device_rtop_port = cast(fp.IOwnedPort, device[device_right_ports[right_count - i - 1]])
rtop_port = device_rtop_port
rbottom_distance = right_distance
rtop_distance = right_distance
if rbottom_distance:
rbottom_distance -= connect_length * 2
if rtop_distance:
rtop_distance -= connect_length * 2
rbottom_transition = None
rtop_transition = None
if right_waveguide_type:
if rbottom_port.waveguide_type != right_waveguide_type:
if not rbottom_distance:
raise AssertionError("right_distance is required for auto transition")
rbottom_transition, (port_in, port_out) = TECH.AUTO_TRANSITION.DEFAULT[rbottom_port.waveguide_type >> right_waveguide_type]
rbottom_distance -= fp.distance_between(rbottom_transition[port_in].position, rbottom_transition[port_out].position)
if rtop_port.waveguide_type != right_waveguide_type:
if not rtop_distance:
raise AssertionError("right_distance is required for auto transition")
rtop_transition, (port_in, port_out) = TECH.AUTO_TRANSITION.DEFAULT[rtop_port.waveguide_type >> right_waveguide_type]
rtop_distance -= fp.distance_between(rtop_transition[port_in].position, rtop_transition[port_out].position)
rconnect_top1 = Straight(
name="rctop1",
length=connect_length,
waveguide_type=rtop_port.waveguide_type,
)
rconnect_top2 = Straight(
name="rctop2",
length=connect_length,
waveguide_type=rtop_port.waveguide_type,
)
rconnect_bottom1 = Straight(
name="rcbottom1",
length=connect_length,
waveguide_type=rbottom_port.waveguide_type,
)
rconnect_bottom2 = Straight(
name="rcbottom2",
length=connect_length,
waveguide_type=rbottom_port.waveguide_type,
)
rtop_sbend, rbottom_sbend = SBendPair(
top_distance=rtop_distance,
bottom_distance=rbottom_distance,
left_spacing=fp.distance_between(rtop_port.position, rbottom_port.position),
right_spacing=right_spacing * (right_count - i * 2 - 1),
bend_degrees=bend_degrees,
top_type=rtop_port.waveguide_type,
bottom_type=rbottom_port.waveguide_type,
top_bend_factory=bend_factories and bend_factories(rtop_port.waveguide_type),
bottom_bend_factory=bend_factories and bend_factories(rbottom_port.waveguide_type),
)
right_joints.append(rbottom_port <= rconnect_bottom1["op_0"])
right_joints.append(rconnect_bottom1["op_1"] <= rbottom_sbend["op_0"])
right_joints.append(rbottom_sbend["op_1"] <= rconnect_bottom2["op_0"])
rbottom_port = rconnect_bottom2["op_1"]
right_joints.append(rtop_port <= rconnect_top1["op_0"])
right_joints.append(rconnect_top1["op_1"] <= rtop_sbend["op_0"])
right_joints.append(rtop_sbend["op_1"] <= rconnect_top2["op_0"])
rtop_port = rconnect_top2["op_1"]
if rbottom_transition:
right_joints.append(rbottom_port <= rbottom_transition["op_0"])
rbottom_port = rbottom_transition["op_1"]
if rtop_transition:
right_joints.append(rtop_port <= rtop_transition["op_0"])
rtop_port = rtop_transition["op_1"]
result_right_ports.insert(0, rbottom_port)
result_right_ports.append(rtop_port)
if not right_distance:
right_distance = abs(rbottom_port.position[0] - device_rbottom_port.position[0])
if right_distance and right_count % 2:
rindex = right_count // 2
rmiddle_port = cast(fp.IOwnedPort, device[device_right_ports[rindex]])
rmiddle_distance = left_distance
rmiddle_transition = None
if right_waveguide_type and rmiddle_port.waveguide_type != right_waveguide_type:
if not rmiddle_distance:
raise AssertionError("middle_distance is required for auto transition")
rmiddle_transition, (port_in, port_out) = TECH.AUTO_TRANSITION.DEFAULT[rmiddle_port.waveguide_type >> right_waveguide_type]
rmiddle_distance -= fp.distance_between(rmiddle_transition[port_in].position, rmiddle_transition[port_out].position)
rstraight = Straight(
name="rmiddle",
length=right_distance,
waveguide_type=rmiddle_port.waveguide_type,
)
right_joints.append(rmiddle_port <= rstraight["op_0"])
rmiddle_port = rstraight["op_1"]
if rmiddle_transition:
left_joints.append(rmiddle_port <= rmiddle_transition["op_0"])
rmiddle_port = rmiddle_transition["op_1"]
result_right_ports.insert(rindex, rmiddle_port)
used_port_names = frozenset((device_left_ports or []) + (device_right_ports or []))
unused_ports = [port for port in device.ports if port.name not in used_port_names]
connected = fp.Connected(
joints=left_joints + right_joints,
ports=(
([port.with_name(left_ports[i]) for i, port in enumerate(result_left_ports)])
+ ([port.with_name(right_ports[i]) for i, port in enumerate(result_right_ports)])
+ unused_ports
),
)
insts += connected
ports += connected.ports
return insts, elems, ports
主要参数描述:
device: 器件
left_spacing: 左侧端口的间距
right_spacing: 右侧端口的间距
bend_degrees: 弯曲波导弯曲角度
device_left_ports: 需要配置的端口，从上至下
device_right_ports: 需要配置的端口，从下至上
left_distance: 左侧输出端口的距离
right_distance: 右侧输出端口的距离
left_waveguide_type: 左侧波导类型
right_waveguide_type: 右侧波导类型
调用案例:
gds_file = Path(__file__).parent / "local" / Path(__file__).with_suffix(".gds").name
from gpdk.technology.bend_factory import EulerBendFactory
library = fp.Library()
TECH = get_technology()
from gpdk.components.mmi.mmi import Mmi
def bend_factories(waveguide_type: fp.IWaveguideType):
if waveguide_type == TECH.WG.FWG.C.WIRE:
return EulerBendFactory(radius_min=15, l_max=15, waveguide_type=waveguide_type)
return waveguide_type.bend_factory
library += [
HFanout(name="mmi",device=Mmi(waveguide_type=TECH.WG.FWG.C.WIRE), left_spacing=600, right_spacing=500, left_distance=100,
right_distance=100,
bend_factories=bend_factories, left_waveguide_type=TECH.WG.SWG.C.WIRE,
right_waveguide_type=TECH.WG.SWG.C.WIRE)
]
fp.export_gds(library, file=gds_file)
下面分别展示了MMI结构以及对应的经过端口延长后结构的版图，其中mmi结构的创建可以参见（mmi）:
