horizontalized
弯曲波导端口水平化。
首先我们需要定义Horizontalized方法:
@dataclass(eq=False)
class Horizontalized(PCell):
"""
Attributes:
device: device whose ports need to be horizontalized
bend_factory: Optional, bend waveguide factory
straight_type: Optional, type of final short straight
straight_length: defaults to 0.1, length of final short straight
Examples:
```python
TECH = get_technology()
device = Horizontalized(device=BendCircular(radius=30, waveguide_type=TECH.WG.FWG.C.WIRE, transform=fp.rotate(degrees=30)))
fp.plot(device)
```
"""
device: fp.IDevice = fp.DeviceParam()
bend_factory: Optional[fp.IBendWaveguideFactory] = fp.Param(required=False)
straight_type: Optional[fp.IWaveguideType] = fp.WaveguideTypeParam(required=False)
straight_length: float = fp.PositiveFloatParam(default=0.1)
def build(self) -> Tuple[fp.InstanceSet, fp.ElementSet, fp.PortSet]:
insts, elems, ports = super().build()
TECH = get_technology()
bend_factory = self.bend_factory
straight_type = self.straight_type
straight_length = self.straight_length
PI = math.pi
HALF_PI = PI / 2
content: List[fp.IDevice] = [self.device]
for port in self.device.ports:
if isinstance(port, fp.IOwnedPort) and not port.disabled:
port_name = port.name
port_orientation = fp.normalize_angle(port.orientation)
final_orientation = None
if -HALF_PI < port_orientation < HALF_PI:
final_orientation = 0
elif HALF_PI < port_orientation < PI or -PI < port_orientation < -HALF_PI:
final_orientation = PI
if final_orientation is not None:
turning_angle = fp.normalize_angle(final_orientation - port_orientation)
if fp.is_nonzero(turning_angle):
port = util.links.bend(TECH, content, start=port, radians=turning_angle, bend_factory=bend_factory)
if straight_length is not None:
port = util.links.straight(TECH, content, start=port, length=straight_length, end_type=straight_type)
port = port.with_name(port_name)
ports += port
insts += content
return insts, elems, ports
其中，组件部分所调用的函数定义如下:
from gpdk.components.fixed_terminator_te_1550.fixed_terminator_te_1550 import Fixed_Terminator_TE_1550
from gpdk.components.ring_filter.ring_filter import RingFilter
from gpdk.components.ring_resonator.ring_resonator import RingResonator
from gpdk.routing.extended.extended import Extended
from gpdk.technology.waveguide_factory import EulerBendFactory
from gpdk.components.grating_coupler.grating_coupler import GratingCoupler
def gc_factory(at: fp.IRay, device: fp.IDevice):
gc = GratingCoupler() # type: ignore
return gc, "op_0"
def bend_factories(waveguide_type: fp.IWaveguideType):
if waveguide_type == TECH.WG.FWG.C.WIRE:
return EulerBendFactory(radius_min=35, l_max=35, waveguide_type=waveguide_type)
elif waveguide_type == TECH.WG.SWG.C.EXPANDED:
return EulerBendFactory(radius_min=55, l_max=35, waveguide_type=waveguide_type)
elif waveguide_type == TECH.WG.SWG.C.WIRE:
return EulerBendFactory(radius_min=45, l_max=35, waveguide_type=waveguide_type)
return waveguide_type.bend_factory
def get_ring_resonator_with_terminator(ring_radius: float):
terminator = Fixed_Terminator_TE_1550(waveguide_type=TECH.WG.FWG.C.WIRE)
ring_resonator = RingResonator(ring_radius=ring_radius, ring_type=TECH.WG.FWG.C.WIRE)
# fp.plot(ring_resonator)
return Extended(
device=fp.Connected(
joints=[ring_resonator["op_2"] <= terminator["op_0"]], ports=[ring_resonator["op_0"], ring_resonator["op_1"], ring_resonator["op_3"]]
),
lengths={"*": 20},
)
def term_factory(at: fp.IRay, device: fp.IDevice):
from gpdk.components.fixed_terminator_te_1550.fixed_terminator_te_1550 import Fixed_Terminator_TE_1550
instance = Fixed_Terminator_TE_1550().h_mirrored() # type: ignore
return instance, "op_0"
调用方法实现自动布局布线，并生成版图文件:
from pathlib import Path
gds_file = Path(__file__).parent / "local" / Path(__file__).with_suffix(".gds").name
library = fp.Library()
TECH = get_technology()
from gpdk.components.bend.bend_circular import BendCircular
from gpdk.technology.waveguide_factory import EulerBendFactory
library += Horizontalized(device=BendCircular(radius=30, waveguide_type=TECH.WG.FWG.C.WIRE, transform=fp.rotate(degrees=30)))
fp.export_gds(library, file=gds_file)

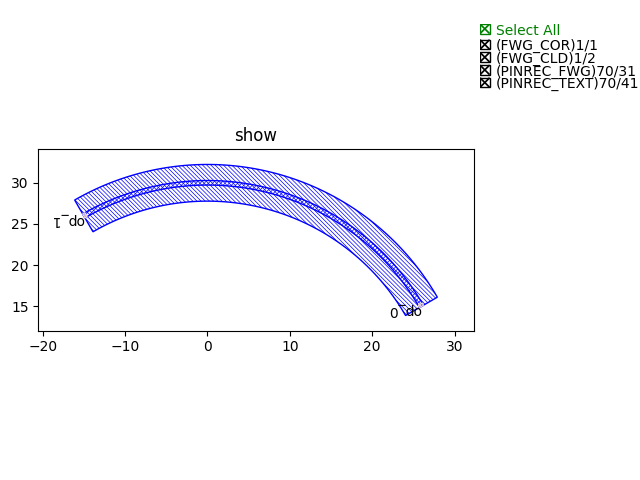

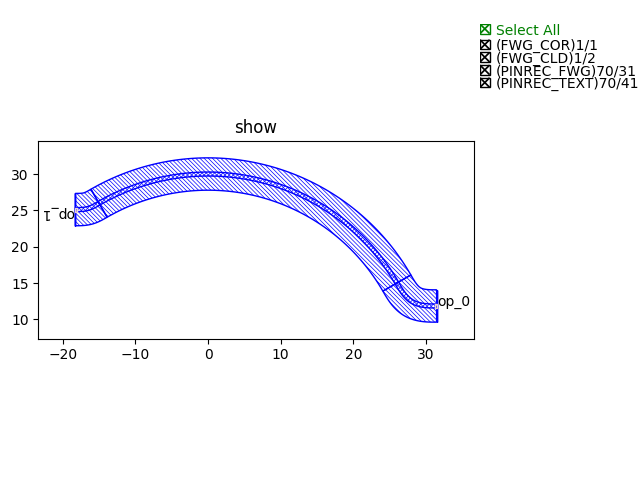

案例如下图所示：
